Description

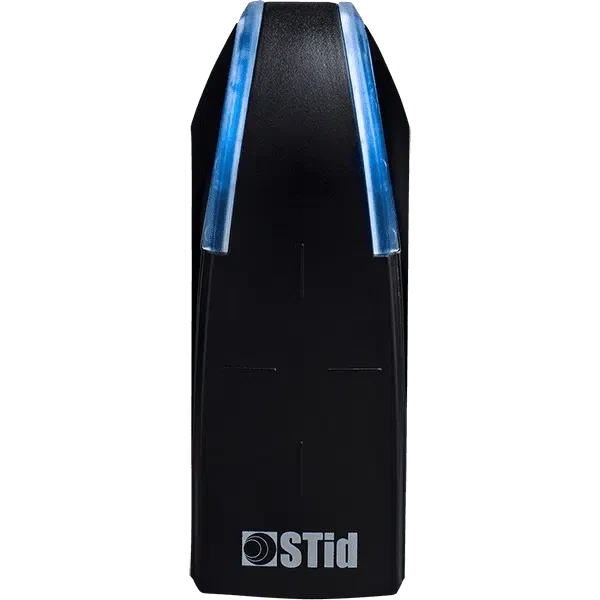

The Architect One Blue is the most compact secure reader combining RFID cards with Bluetooth® (Low Energy) technologies. This mullion reader is specially designed to be installed in spaces requiring a small footprint.
Features:
- Easy to install
- Multi-technology reader
- Pre-configured secure read only
- Chip: STid Mobile ID(virtual card), MIFARE® DESFire® EV2
Technical Specifications
Color
Black
Compliance
ISO14443 types A & B, ISO18092 / Certifications: CE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada), BIS (India), RCM (Australia & New Zealand), UL, RoHS & UL294 Indoor & Outdoor
Connectivity Technology
Bluetooth
Current
150 mA/12 VDC maximum
Dimensions
110 x 42 x 22 mm / 4.33’’ x 1.65’’ x 0.86’’
Frequency
13.56 MHz
IK Rating
IK10
IP Rating
IP65
Interface
Wiegand 32/37 bits
Material
ABS-PC UL-V0
Max Read Range
0 - 6 cm in RFID / 0 - 20 m
Operating Temperature
- 30°C to + 70°C
Voltage
9-15 VDC
