Description

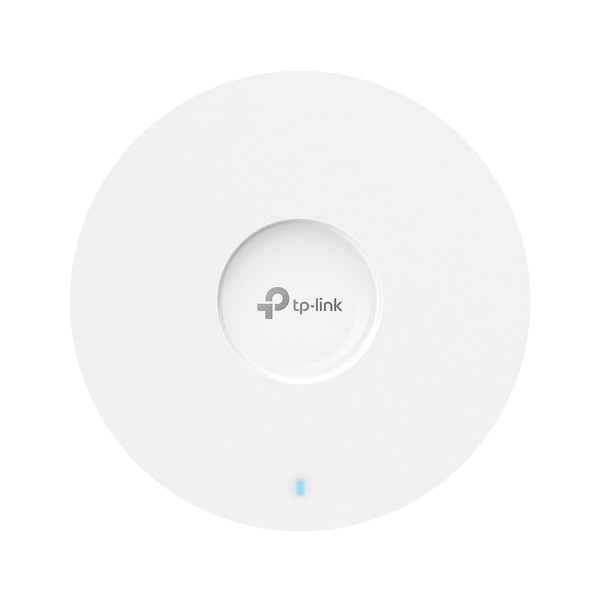

The TP-Link EAP670 is an enterprise-grade, ceiling-mounted Wi-Fi 6 (802.11ax) access point designed to deliver high-performance, multi-gigabit wireless connectivity in dense business environments like offices, hotels, and schools. It features combined speeds up to 5378 Mbps and central cloud management
Features:
- Blazing-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 4804 Mbps on 5 GHz totals 5378 Mbps WiFi speeds.
- High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
- Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
- 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160
- Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.
- Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment
Technical Specifications
Antenna Type
Internal Omni 2.4GHz 2x4dBi, 5GHz 4x5dBi
Button Type
Reset Button
Compliance
CE FCC RoHS
Consumption
19.8W
Dimensions
9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)
Ethernet Port
1x 2.5 Gigabit RJ45 Port
Frequency
2.4GHz/5GHz
Mount Type
Ceiling Mount, Wall Mount
Operating Temperature
0–40 ℃ (32–104 ℉)
Signal Rate
5GHz Up to 4804Mbps, 2.4GHz Up to 574Mbps
Voltage
12V 1.5A DC
Warranty
5 Year Warranty
