Description

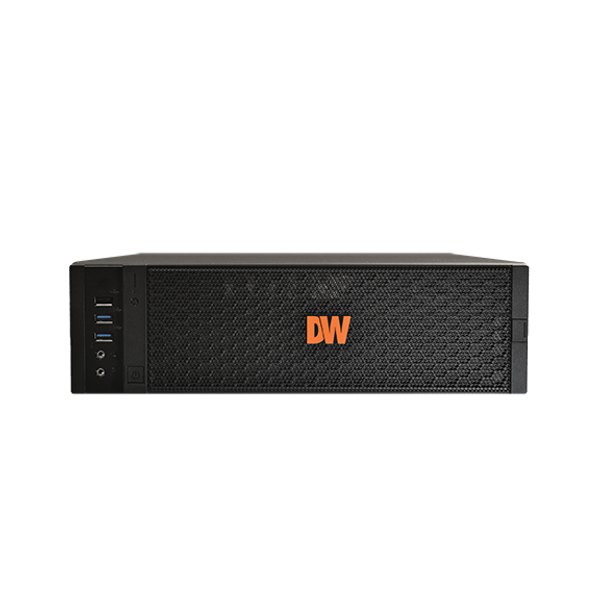

Blackjack® DX™ slim desktop servers are reliable and high-performance solutions for viewing, monitoring and recording multiple IP cameras of any resolution at up to 80Mbps throughput. The servers are NDAA and TAA compliant and include Linux® Ubuntu® OS, Intel Quad-Core processor, dual network cards and local outputs for initial setup. The servers come pre-loaded with DW Spectrum® IPVMS and four complimentary recording licenses, provide up to 40TB internal storage, are ONVIF conformant and come with a 5-year limited warranty.
- Supports all ONVIF conformant IP cameras
- Storage options 2-40TB internal storage
- Record and manage single- and multi-sensor IP cameras of any resolution up to 80Mbps throughput
- Intel® processor
- 1xTrue HD, 1x DVI-D and 1x D-Sub, 1 display output at a time
- Dual network ports
- Ubuntu® Linux® OS
- Hosting DW Spectrum® for setup, configuration, monitoring and recording
- One-time recording license charge, fully transferable between cameras and encoders
- One (1) 4-channel license included (DW-SPECTRUMLSC004).
- No annual maintenance fees
- Simple enterprise scalability and auto device discovery
- Dual stream recording
- USB mouse and keyboard included
- Designed, assembled and tested in the U.S.A.
- NDAA/TAA compliant
- 5 Years limited warranty
Technical Specifications
Backup
Network backup via DW Spectrum IPVMS
CPU
Intel® quad core processor
Certification
CE,FCC,NDAA,TAA
Display Modes
Unlimited, Customizable, Sequence
Ethernet Ports
2x 1G Ethernet (RJ45)
Form Factor
Slim Desktop
Included IP Licenses
4
Local Video Output Resolution
HD 1080p
Local Video Outputs
For initial configuration and server management, D-Sub port, DVI, True HD, 1 display output at a time
Max Throughput (Mbps)
80Mbps
Maximum HDD Bay
2 x SATA HDD
Maximum Storage
Maximum 20TB
Memory
4GB
Mobile Apps
iOS® and Android®
Network Remote Software
Cross-platform - Windows®, Linux Ubuntu® and Mac®, DW Spectrum Mobile App
OS On SSD
m.2 SSD
Operating Humidity
20 ~ 90% RH,
Operating Temperature
41 ~ 104 °F (5~40 °C)
PTZ Control
ONVIF
Playback Functions
Calendar, Event search, Smart motion search, Thumbnail search, Timeline
Power Consumption
300W, A UPS is recommended
Power Supply
300W
Pre-loaded VMS Software
DW Spectrum® IPVMS
RAID Options
No RAID
Recorder Dimensions (H X W X D)
Standing: 13.1" x 3.88" x 15.8" (334 x 98.5 x 402 mm), Desktop: 3.88" x 13.1" x 15.8" (98.5 x 334 x 402 mm)
Recording Modes
Continuous, Motion + low res always, Motion + Object, Motion + Object + Low res, Motion detection, Object + Low res, Object only
Storage Capacity
20TB
System Operation
Graphical user interface (GUI), Remote via DW Spectrum IPVMS, USB mouse (included)
USB Interface
Yes
Video Card
On-board Intel Graphics
Video Compression
H.264, H.265
Video Operating System
Linux® Ubuntu Desktop 20.04.5 LTS OS
Weight (Barebone, HDD Not Included)
15.65 lbs (7.09 kg)
Warranty
5 Year Limited Warranty
