Description

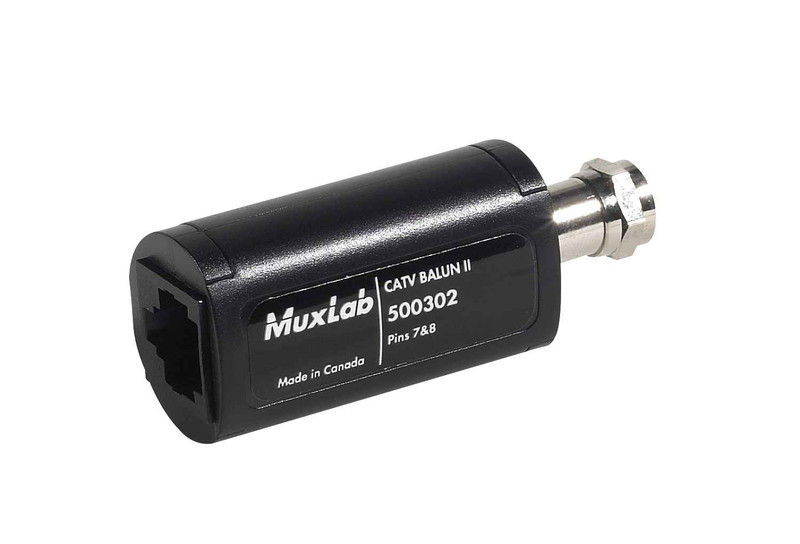

The CATV Balun II (500302) allows traditional 75-ohm coaxial cable to be replaced by a single pair of Cat 5 UTP cable in the CATV, VHF and FM environments in certain applications. Used in pairs, the CATV Balun II allows broadband CATV equipment to be integrated into structured cabling systems thereby allowing CATV equipment to be moved or added to any convenient modular wall outlet.
Features:
- Low insertion loss
- Compact design
- Supports broadband Internet and digital cable
- Eliminate costly coaxial cable
- Quicker moves, adds and changes
- Neater wiring
Technical Specifications
Bandwidth
5 MHz to 900 MHz
Compliance
FCC Part 15 Class A, CE
Connector Type
Input: “F” connector – male, Output: RJ45 – female
Material
ABS
Operating Humidity
Maximum 95% (non-condensing)
Operating Temperature
32 to 104°F (0 to 40°C)
Transmission Distance
Up to 100m (330ft)
Warranty
Lifetime Warranty
