Description

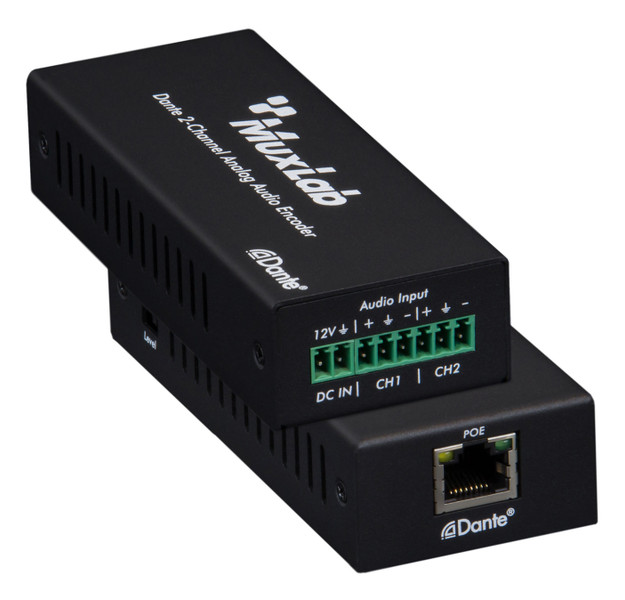

This Dante 2-Channel Analog Audio Encoder (model: 500551) permits non-Dante compatible analog audio equipment to interface with Dante compatible professional audio equipment. The unit allows the transmission of full-range (20Hz to 20KHz) balanced or unbalanced two channel analog audio signals over the network to Dante equipment. It can be powered using either PoE from any PoE network switch or via local with a 12v power supply.
Features:
- Interface analog audio equipment to Dante audio equipment
- Supports balanced/unbalanced 2ch analogue audio input
- Audio sampling rate supports 44.1kHz,48kHz and 96kHz (24bit)
- Audio input supports 3-level gain adjustment:+18dBu, 0dBu (default) and-10dBV
- Supports DC 12V power supply and PoE function (IEEE802.3af Class 0)
- Supports AES67 RTP audio transport
Technical Specifications
Bandwidth
100M
Transmission Distance
100m (CAT6/6A)
Material
Metal
Color
Black
Voltage
12V
Consumption
1.2W
Operating Temperature
32 - 104°F / 0 - 40°C
Operating Humidity
20 - 90% RH (no condensation)
Warranty
2 Year Warranty
