Description

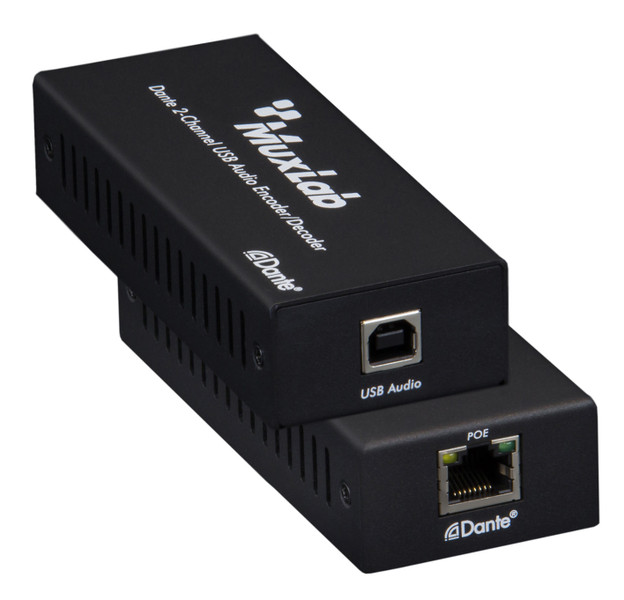

The Dante 2-Channel USB Audio Encoder/Decoder (Model: 500550) is designed to both encode 2ch USB audio to a Dante digital signal, and decode a Dante digital signal to 2ch USB audio. The unit is plug & play and can be powered using either PoE from any PoE network switch or via 5V from the USB device; In addition, the product is compact and easy to carry.
Features:
- Compliant with USB 2.0 Full Speed Operation
- Compliant with USB Audio Device Class
- Encodes USB audio to Dante digital signal
- Decodes a Dante digital signal to USB audio
- Audio sampling rate supports 44.1kHz, 48kHz and 96kHz (24bit)
- Support USB 5V power supply and PoE function (IEEE802.3af Class 0)
Technical Specifications
Bandwidth
100M
Color
Black
Consumption
1W
Material
Metal
Operating Humidity
20 - 90% RH (no condensation)
Operating Temperature
32 - 104°F / 0 - 40°C
Transmission Distance
100m (CAT6/6A)
Voltage
5V-500MA
Warranty
2 Year Warranty
