Description

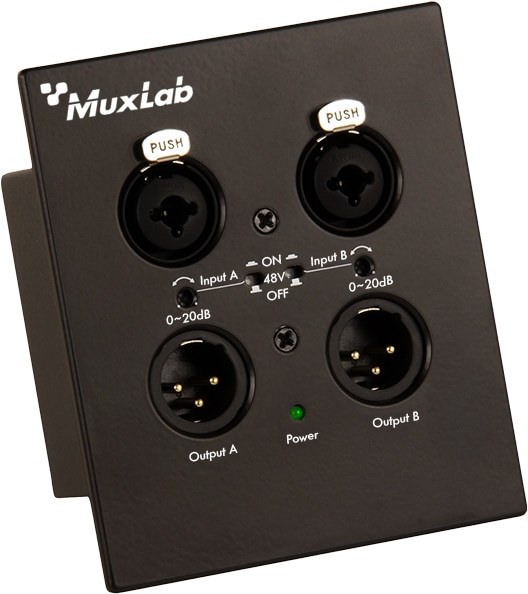

The Dante 2-Chanel XLR Wall-Plate (Model 500558) permits non-Dante compatible analog audio equipment to interface with Dante compatible professional audio equipment. The unit allows the transmission of full-range (20Hz to 20KHz) balanced or unbalanced two channel analog audio signals on XLR over the network to Dante equipment. It is powered using the PoE from any PoE network switch. The Dante 2 chanel XLR Interface is designed to be compatible with standard double gang US wall boxes.
Features:
- Built-in Dante module
- Supports PoE power from PoE network switches
- Features 2 XLR balanced inputs and 2 XLR balanced outputs
- Features 2 channels Dante input and 2channels Dante output
- Audio sampling rate supports 48kHz (24bit)
- The input supports 48VDC phantom power supply
Technical Specifications
Impedance
Input: Balance 20k Ohm Balance 100 Ohm
Ethernet Port
RJ45 interface
Frequency
20Hz-20kHz
Number of Gangs
2 Gang
Consumption
2W
Operating Temperature
0℃ ~ +40℃
Channels
2
Warranty
2 Year Warranty
Warranty
2 Year Warranty
