Description

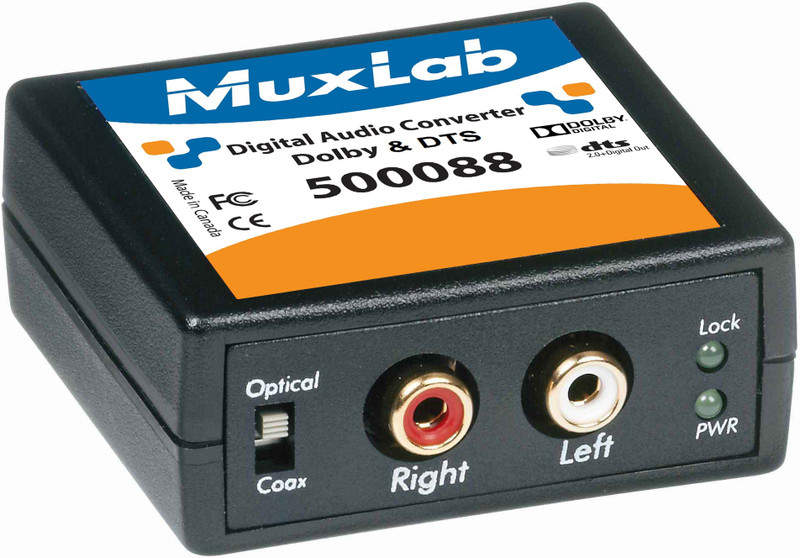

The Digital Audio Converter, Dolby & DTS converts one LPCM-encoded, one DTS or one Dolby Digital coaxial (S/PDIF) or optical (TOSLINK) digital audio signal to a standard left/right analog audio output, thereby allowing a digital audio source such as a DVD or CD player without RCA analog audio output to be connected to an audio-video receiver or TV.
Features:
- Converts and downmixes Dolby Digital and DTS to stereo audio
- Bit rate: 24bit S/PDIF compressed and uncompressed bit stream
- Input: one (1) Digital Coax (S/PDIF), one (1) Digital Optical (TOSlink)
- Switch for selecting between S/PDIF and TOSlink inputs
- Digital Optical (TOSlink) cable included
- Velcro pads included for ease of installation
Technical Specifications
Compliance
FCC, CE, RoHS
Consumption
2.05Watt
Distortion
<0.001% @ 1KHz
Material
ABS Fire Retardant Plastic
Operating Humidity
Up to 95% non-condensing
Operating Temperature
0° to 40°C
S/N Ratio
> 90 dB (20Hz – 20 KHz)
Switch Type
SPDIF and TOSlink
Voltage
110-240V/5VDC
Warranty
2 Year Warranty
