Description

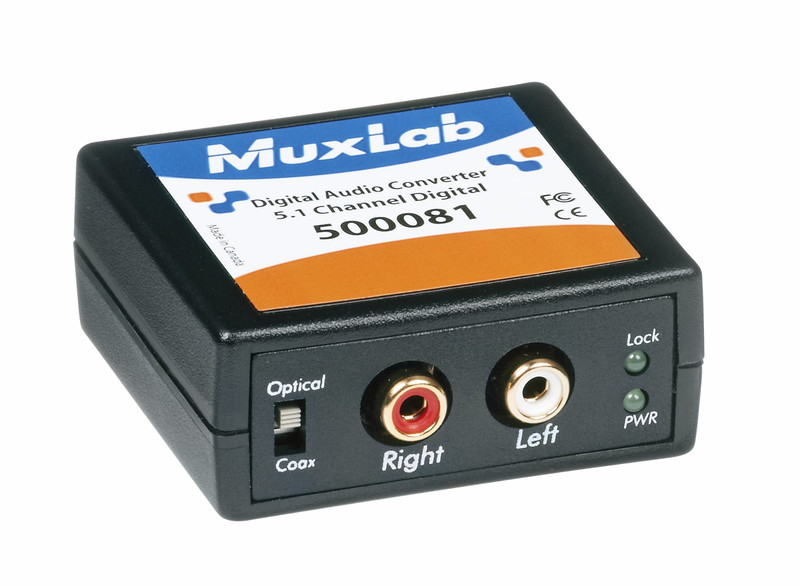

The Digital Audio Converter, Dolby Digital (500081) converts one Dolby Digital encoded coaxial (S/PDIF) or optical (TOSLink) digital audio signal to a standard left/right analog audio output, thereby allowing a digital audio source such as a DVD or CD player without RCA analog audio output to be connected to an audio-video receiver or TV.
Features:
- Converts and downmixes Dolby Digital to stereo audio
- Bit rate: 24bit S/PDIF compressed and uncompressed bit stream
- Input: one (1) Digital Coax (S/PDIF), one (1) Digital Optical (TOSlink)
- Switch for selecting between S/PDIF and TOSlink inputs
- Digital Optical (TOSlink) cable included
- Velcro pads included for ease of installation
Technical Specifications
Form Factor
Desktop
Channels
2
Audio Type
- 1x RCA Coaxial S/PDIF Input
- 1x TOSLINK Optical S/PDIF Input
S/N Ratio
> 90 dB (20 Hz to 20 kHz)
Voltage
110 to 240 VAC
Consumption
0.75W
Operating Temperature
32 to 72°F / 0 to 40°C
Operating Humidity
up to 95% Humidity
Compliance
- CE
- FCC
- RoHS
Warranty
2 Year Warranty
Warranty
2 Year Warranty
