Description

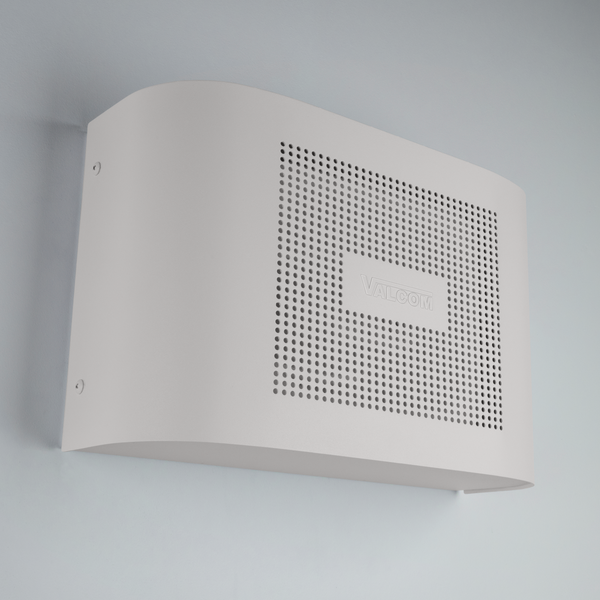

Valcom’s VIP-9831AL-W IP Stealth Horn with Long Line Extender is a self-contained paging system that enables voice paging up to 300 feet from an Ethernet connection. The VIP-9831AL-W consists of a horn and Network/Audio Interface board allowing standalone capability when used with a SIP enabled telephone system or can be accessed from a variety of Valcom managed VoIP products. The stylish, contemporary design blends well with various indoor environments.
Features:
- SIP enabled
- Power over Ethernet (PoE) 802.3af compatible
- Provides paging from SIP connection or via a variety of Valcom managed VoIP products.
- J-45 network connection
- Network activity LEDs
- Horn enclosure indoor/outdoor use
Technical Specifications
Audio Compression
G.711 u-law
Color
White
Compliance
FCC
Ethernet Port
10/100 Mbps Ethernet
Frequency
80 Hz to 15 kHz
Impedance
45 Ohms Sound Pressure > 96 dB @ 4ft (1.22 m)
Material
Aluminum
Operating Humidity
0 to 85% non-precipitating 0 to 95% non-condensing
Operating Temperature
Audio Interface:+32 to +104 °F (0 to +40 °C), Horn: -4 to +131 °F (-20 to +55 °C)
Protocol
IETF SIP (RFC3261), IETF IGMP version 2 or 3 (RFC2236, RFC3376), IETF RTP (RFC1889), IETF RTP Payload for DTMF (RFC2833)
Warranty
1 Year Warranty
