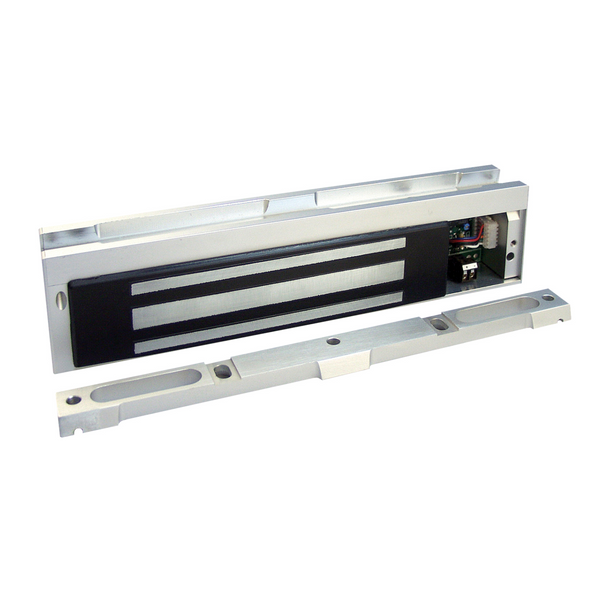

Description
12/24 VDC, DPS
Features:
- Patented instant release circuit - no residual magnetism
- Surface mounts easily with mounting bracket using minimal tools
- Internal wire access chamber
- Mounted using steel machine screws into blind finishing nuts
- Brushed aluminum finish
- All ferrous metal surfaces plated to MIL specification
Technical Specifications
Holding Force
600 lbs (272 kg)
Voltage
12/24 VDC automatic dual-voltage
Current Draw 12 V
350 mA
Current Draw 24 V
170 mA
Dimensions Maglock
- Depth 1 11/16?
- Height 2 1/2?
- Length 10 1/2?
Operating Temp
+32 °F to +110 °F (0 °C to +43 °C)
Material
Ferrous body with aluminum housing/plating
Finishing
- Brushed aluminum
- plated to MIL spec
Seal Rating
- Fully sealed
- tamper/weatherproof electronics
BondSTAT Option
Available on DPS/B types
DPS Option
Door Position Switch available
LED Indicator Option
LED available on DL variants
Anti-Tamper Option
Anti-tamper switch on DLST
Mounting
Bracket-mounted with wire chamber
Residual Magnetism
Instant-release circuit
Noise Suppression
MOV included
Warranty
Limited Lifetime Warranty
Compliance
- UL 10C
- CAN4-S104
- UL 294
- CSA-C22.2 No.205
- ANSI/BHMA A156.23 Grade 3
- CSFM
- CE
Applications
Interior traffic control
Aesthetic Finish
Brushed aluminum
Cable Chamber
Internal wire access
Design Feature
Collapsing blind nuts for strength
Warranty
Limited Lifetime Warranty
