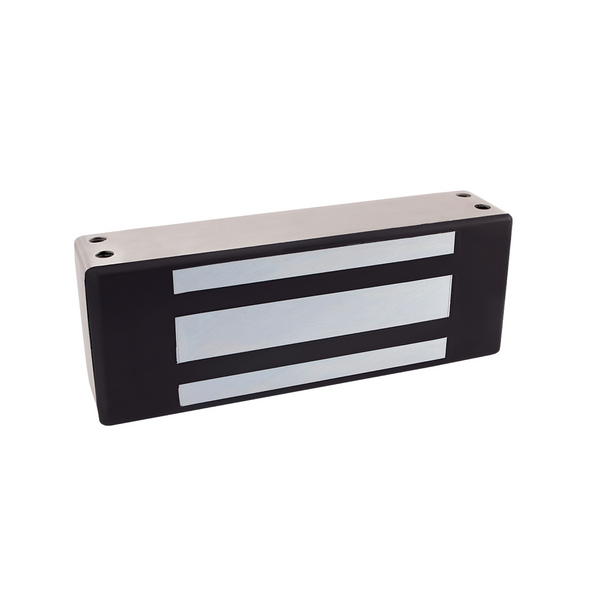

Description
Face Drilled, Gate Conduit
Features:
- PoE friendly
- Fire rated—3 hours
- Sustainability documentation
- Automatic dual voltage - no field adjustment required
- Fully sealed electronics - tamp and weather resistant
- Size optimized for use with door closers
Technical Specifications
Automatic Dual Voltage
Yes
Cable Length
10 ft jacketed cable
Certifications
UL 10C listed (fire rated)
Compliance
Same as M62FD: UL, CAN/ULC, ANSI/BHMA, NFPA, CSFM, CE, NEMA 4X, IEC IP66
Conduit Fitting
Universal 1/2? female ? 3/4? male
Dimensions (Magnet)
8? × 1¾? × 3?
EPD/HPD
Available
Electronics
Fully sealed, weatherproof
Finishing
Satin stainless steel US32D/630
Holding Force
1,200 lbs (544 kg)
Indoor / Outdoor Use
Yes
Material
Brushed stainless steel & plated ferrous surfaces
Monitoring Options
BondSTAT & DPS optional
Mounting
Face drilled + threaded conduit fitting
Noise Suppression
Built-in MOV
Operating Temp
-40 °F to 140 °F
PoE Friendly
Yes
Release Circuit
Patented instant-release
Strike Options
Standard, Split, Offset, SASM
Strike Plate Size
6? × ½? × 2¾?
Voltage / Current Draw
250 mA @ 12 VDC; 150 mA @ 24 VDC
Warranty
Limited Lifetime Warranty
