Description

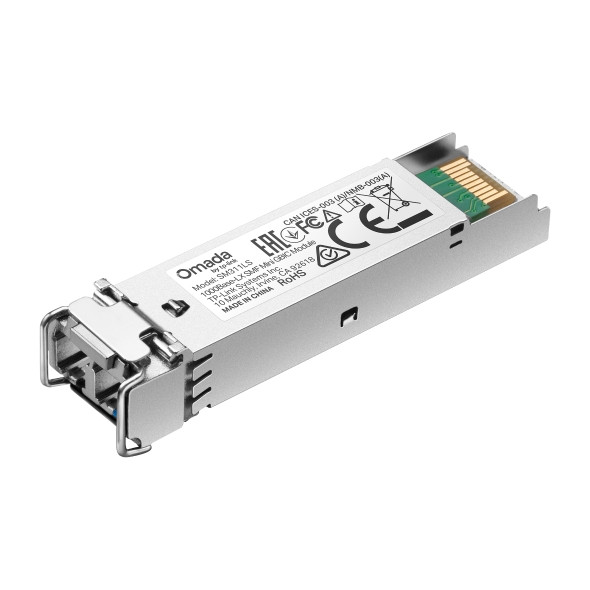

The SM311LS series Fiber Module Cards are introduced to extend transferring distance. Installed in our managed/smart switches, they can extend the distance to even 20km, which basically satisfy the distance requirement of LAN. Users can choose the fiber modules according to specific demands.
Features:
- Up to 20 km transmission distance in 9/125 μm SMF (Single-Mode Fiber)
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
- Hot-Pluggable with maximum flexibility
- Commercial Product Operating Temperature Range: 0-70°C
Technical Specifications
Cable Length
20Km
Cable Type
Single Mode Fiber
Compliance
FCC CE
Dimensions
2.1×0.5×0.5 in(55.4×13.7×12.9 mm)
Operating Temperature
0–70 °C (32–158 °F)
Protocol
IEEE 802.3z CSMA/CD TCP/IP
Voltage
3.3V
Wavelength
1310nm
