Description

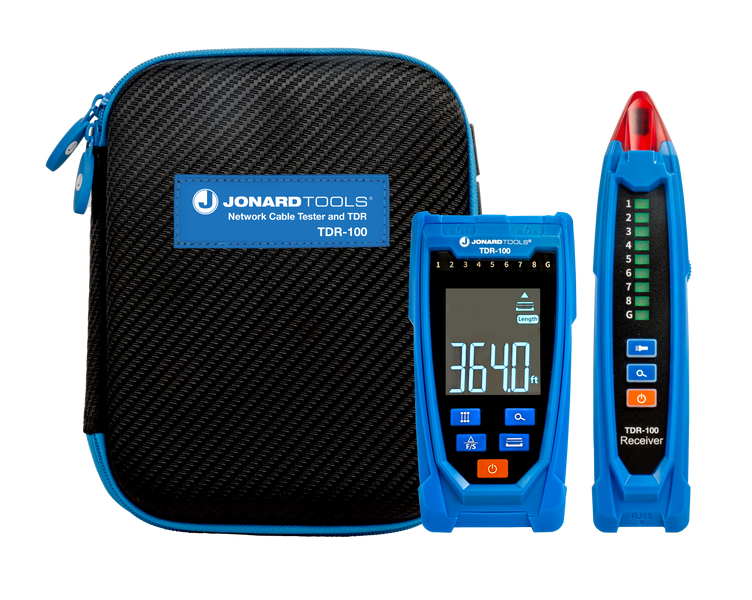

Designed for professionals working with network cabling, this advanced tester combines TDR technology, tone generation, and wire mapping into one versatile tool. It accurately measures cable length, identifies faults such as opens and shorts, and traces cables with precision using the included probe. The bright 2.5" color LCD provides clear readings, while the built-in flashlight enhances visibility in dim environments, making it ideal for installation, maintenance, and troubleshooting tasks.
Features:
- TDR function measures cable length and detects faults from 6.6 ft to 1,312 ft
- Wire pair mapping tests for opens, shorts, crossed pairs, and reversals
- Cable tracing uses tone generator and probe to identify cables in structured systems
- 2.5" color LCD screen and built-in flashlight for use in dark or enclosed areas
Technical Specifications
Cable Length
6.6ft-1312ft
Dimensions
9 in x 7 in x 3 in (22.86 cm x 17.78 cm x 7.62 cm)
Display Size
2.5in Screen
Display Type
LCD Color Screen
Operating Temperature
0~40°C
Warranty
Limited Warranty
