Description

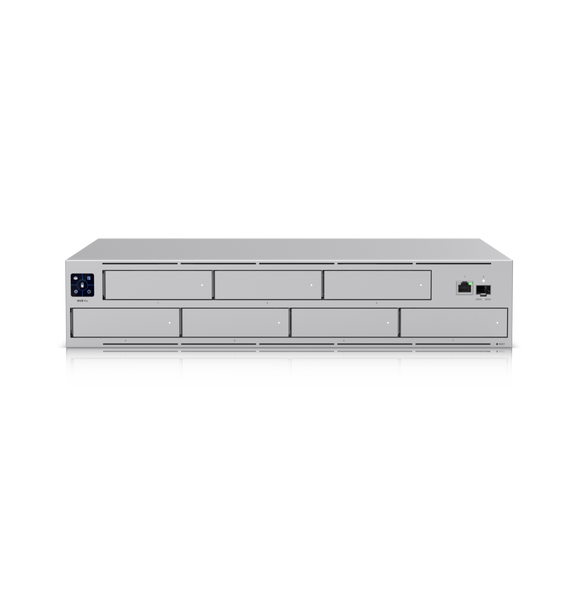

A 2U-sized video recorder with (7) 2.5/3.5" HDD bays that can provide up to 60 days of storage for (24) 4K cameras or (70) Full HD cameras.
Technical Specifications
Ambient Operating Humidity
5 to 95% noncondensing
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Certifications
FCC, CE, IC
Dimensions
17.4 x 12.8 x 3.4" (442 x 325 x 87 mm)
442 x 325 x 87 mm (17.4 x 12.8 x 3.4")
ESD/EMP Protection
Air: ± 12kV, contact: ± 8kV
Enclosure Material
SGCC steel
HD Cameras
2K cameras: 70
4K cameras: 35
: 24
LCM Display
(1) 1.3" touchscreen
Management Interface
Ethernet In-Band
Max. Power Budget For Drives
135W
Max. Power Consumption
160W
Mount Material
SGCC steel
Networking Interface
(1) GbE RJ45 port
(1) 1/10 GbE SFP+ port
Power Method
(1) Universal AC input, 100—240V AC, 3A Max., 50/60 Hz
(1) USP-RPS DC input, 11.5V DC, 13.91A
Power Supply
AC/DC, internal, 200W
RF Interface
Bluetooth 4.1
Supported Voltage Range
100—240V AC
Weight
20.3 lb (Without mounting brackets: 9.2 kg)
20.8 lb (With mounting brackets: 9.5 kg)
Without mounting brackets: 9.2 kg (20.3 lb)
With mounting brackets: 9.5 kg (20.8 lb)
