Description

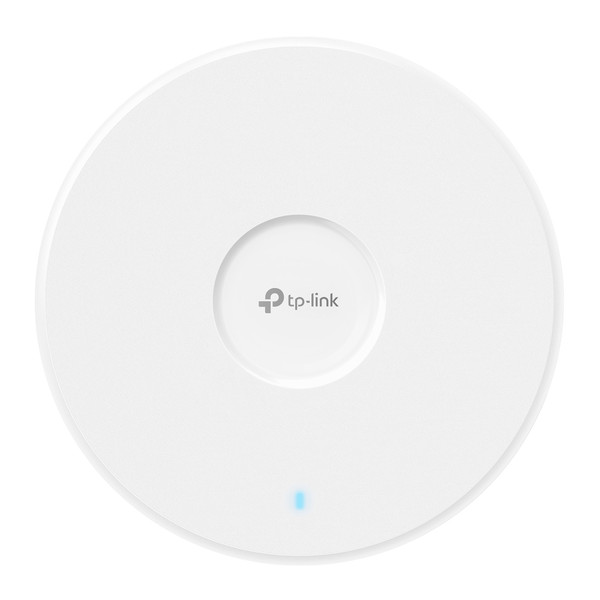

The TP-Link EAP783 is an enterprise-grade, tri-band ceiling/wall-mount Access Point (AP) designed for high-density business environments. Leveraging Wi-Fi 7 (802.11be), it delivers blazing-fast combined speeds up to 21.03 Gbps, advanced multi-link operation (MLO), and dual 10G Ethernet ports for ultimate, bottleneck-free wireless connectivity
Features:
- BE22000 Tri-Band Wi-Fi 7 (11520 Mbps on 6 GHz + 8640 Mbps on 5 GHz + 1148 Mbps on 2.4 GHz).
- A clear 6 GHz band brings cleaner and wider band resources.
- 2x 10G ports unlock the full potential of Wi-Fi 7
- 320 MHz bandwidth enables many more simultaneous transmissions
- Multi-Link Operation and Multi-RUs ensure the high performance of your network.
- Advanced Functions: Centralized management, mesh, and AI roaming.
Technical Specifications
Bluetooth
Yes
Button Type
Reset Button
Compliance
CE FCC RoHS IC
Consumption
39W
Dimensions
11.0 x 11.0 x 1.8 in (280 x 280 x 46.5 mm)
Ethernet Port
2x 10G Ethernet Ports
Frequency
6GHz, 5GHz, 2.4GHz
Mount Type
Ceiling Mount, Wall Mount
Operating Temperature
0 °C–40 °C (32 °F–104 °F)
Signal Rate
6GHz Up to 11520Mbps, 5GHz Up to 8640Mbps, 2.4GHz Up to 1376Mbps
User Capacity
760+
Voltage
12V DC
Warranty
5 Year Warranty
