Description

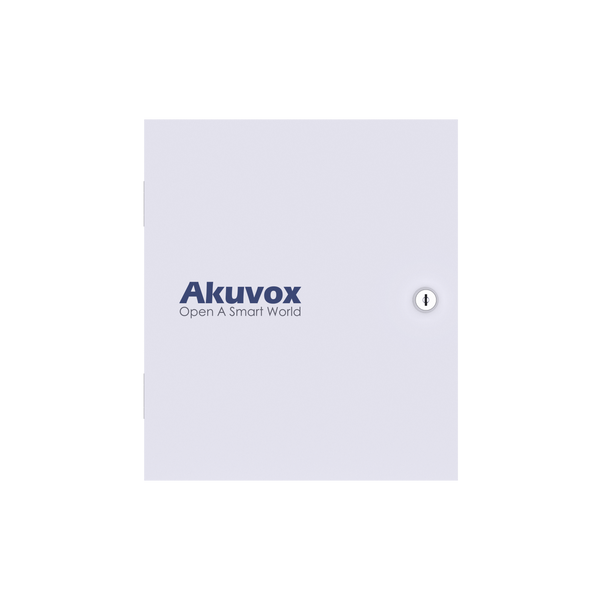

The Akuvox EC33 is an IP elevator controller which uses HTTP commands to communicate with other Akuvox devices. Each controller has 32 outputs and can expand to 64 outputs
Features:
- 10/100M Ethernet
- Large storage for 20,000 card and 100,000 logs
- EC33 supports 32 outputs an can connect to an expansion controller to expand to 64 outputs
- RS485 port to connect to a expansion controller
- Fire Alarm input to support emergency door release or normal lift commands
- Works with other Akuvox devices by using HTTP commands
Technical Specifications
Communication
TCP/IP
Dimensions
320 x 270 x 75 (mm)
Ethernet Port
IEEE802.3af PoE
Input Type
Fire Alarm 1
Operating Humidity
10~90%
Operating Temperature
<45°C
Output Type
Relays Out: 32
Voltage
100~240VAC
Wiegand
26/34
