Description

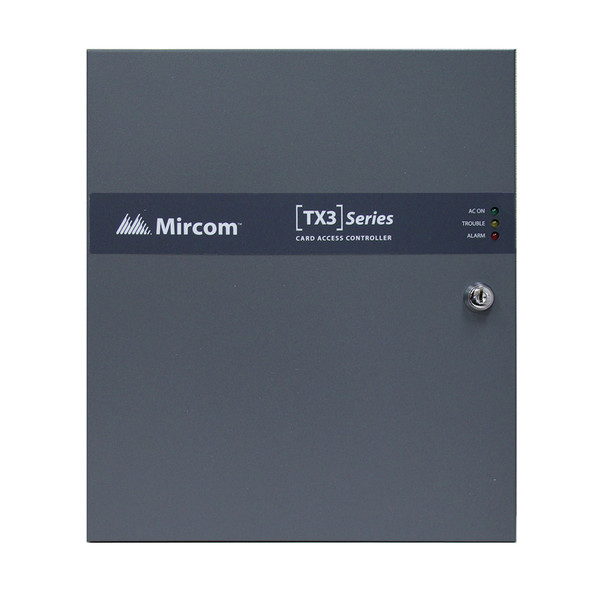

The TX3-CX-2-A controller has a unique feature of being compatible to the entire family of TX3 platform solutions from voice entry, elevator restriction and wireless Aperio locksets. It is a powerful hybrid IP and RS-485 networked two door controller that will manage up to 126 doors using the RS-485 network.
Features:
- Hybrid TCP/IP and RS-485 architecture
- Manages up to 126 doors via RS-485
- 8 supervised inputs
- 8 programmable outputs (6 Form C contacts, 2 powered 12VDC)
- Supports all credential formats (clamshell cards, graphic cards, key tags, wafers)
- Optional vehicular control using dual technology wireless transmitters
Technical Specifications
Door Control
2 Doors
Elevator Control
96 Floors
Input Type
8 Supervised Inputs
Voltage
12VDC
Wiegand
Compatible
Warranty
3 Year Warranty
