Description

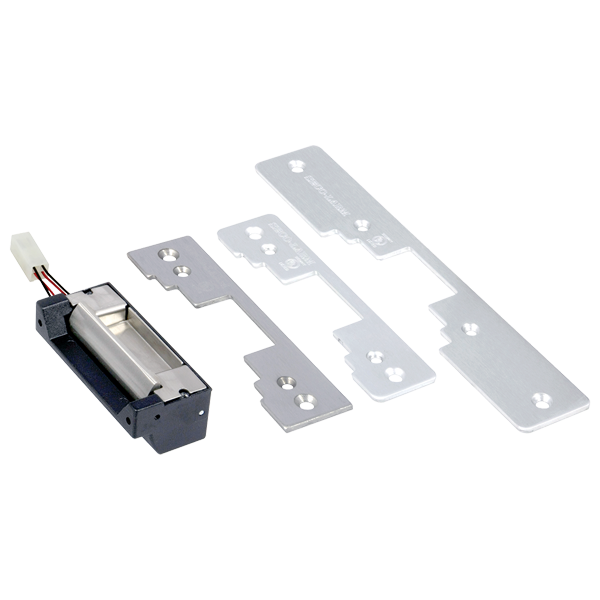

The SECO-LARM® Universal Door Strike can be used with virtually any cylindrical-locking system and can be configured for use in wood, aluminum, or metal doors. Included are three different-sized faceplates that can be easily installed on the strike to match the specific type of door frame.
Features:
- UL 294 & UL 1034 Listed
- Includes 3 faceplates for nearly any door type
- Field-selectable for fail-safe or fail-secure operation
- Field-selectable dual-voltage 12/24 VDC operation
- Powered by a solenoid
- Reversible non-handed design fits either right-hand or left-hand doors
- Low profile: Strike is only 1-1/4in deep for use with hollow aluminum frames
Technical Specifications
Operating Voltage
12 or 24 VDC ±15%
Operation
Fail-secure or fail-safe
Current Draw
- 280mA@12VDC
- 140mA@24VDC
Jaw Strength
- 2
- 000-lb
Operating Temperature
- 14°
- F~113°
- F (-10°
- ~45°
- C)
Operating Humidity
85%± 15%
Dimensions – Aluminum
- 4-7/8&Prime
- x 1-1/4&Prime
- (124×32 mm)
Dimensions – Hollow Metal
- 4-7/8&Prime
- x 1-1/4&Prime
- (124×32 mm)
Dimensions – Wood
- 7-15/16&Prime
- x 1-7/16&Prime
- (202×37 mm)
