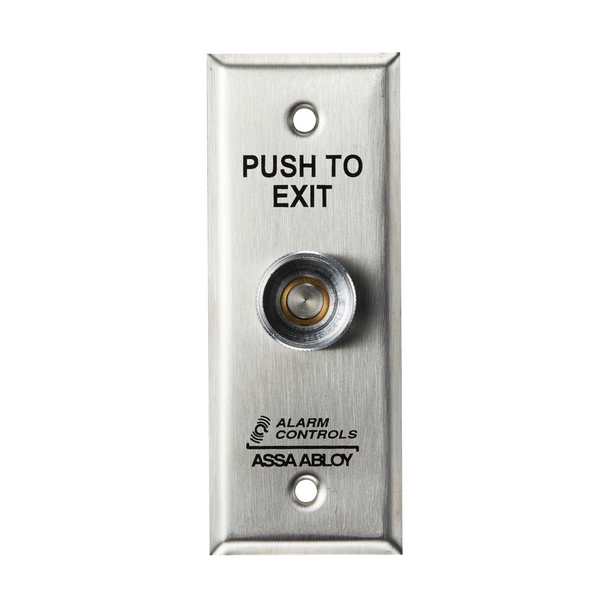

TS-15, TS-16 Request to Exit Station with Pneumatic Timer TS-16 - TS-16
Special Order

Alarm Controls

SKU TS-16 TS-16

TS-15, TS-16 Request to Exit Station with Pneumatic Timer TS-16

Product Rating Product Rating Product Rating Product Rating Product Rating 0 Reviews
Write a Review
Price:
$389.00
  • Weight:
    0.20 LBS
  • Shipping:
    Calculated at Checkout

Key features

Mounting Plate Type Single-gang stainless steel (430 SS)
Finish 302 stainless steel
Button Diameter ¼in (6 mm) with guard ring
Time Delay Range 2–60 seconds (adjustable pneumatic)
Timer Life ~1 million operations
Power Requirement No external power required
Limited Lifetime Warranty
Adding to cart… The item has been added
! Special Order Information
Sale assistant
Contact our Sales Team for a tailored experience
(718) 298-4000 Email us
Sign In for Dealer Pricing Become a BLVS Customer
SIGN IN

Description

One N/O and One N/C Contact, 5/16in Round Button with Guard Ring, PUSH TO EXIT, Single Gang, Stainless Steel Wall Plate

Features:

  • Contacts rated 10A @ 35VDC
  • 1/4" button with guard ring
  • One normally-open contact pair and on normally-closed contact pair
  • Stainless steel plate
  • Switch depth 2-1/4" behind plate
  • Switch mounted on a single gang stainless steel electrical plate

Technical Specifications

Button Diameter
¼in (6 mm) with guard ring
Contact Rating
10 A @ 120 V AC/DC
Contacts
1 N/O + 1 N/C isolated
Finish
302 stainless steel
Mounting Plate Type
Single-gang stainless steel (430 SS)
Operating Temperature
+15 °F to +120 °F (–9 °C to +49 °C)
Power Requirement
No external power required
Switch Depth
1¼in behind plate
Termination
10in color-coded leads
Time Delay Range
2–60 seconds (adjustable pneumatic)
Time Repeatability
± 10 %
Timer Life
~1 million operations

Warranty

Limited Lifetime Warranty
