Description

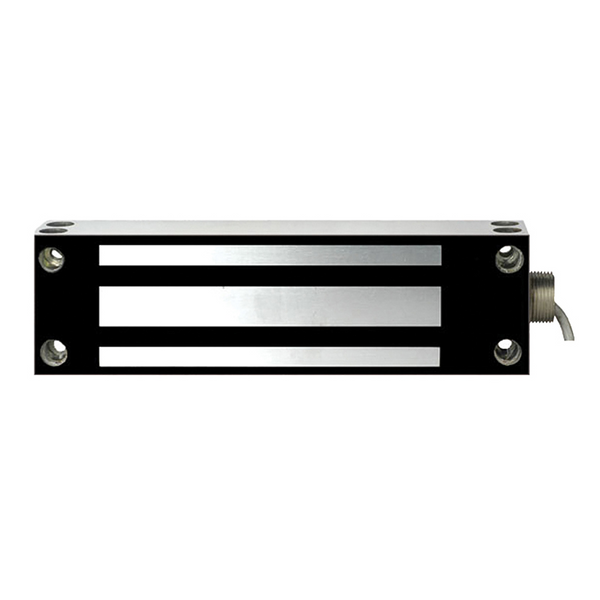

1200 lb Weather Resistant Magnetic Lock, 12/24 VDC
Features:
- 10" color coded wire leads in plastic jacket
- Non-aluminum parts are plated to resist corrosion
- Completely sealed in stainless steel case
- 0.5" ID / 0.75" OD conduit fitting pipe thread
- Self drilling TEC screws
- Limited lifetime warranty
Technical Specifications
Armature Plate Size
7-1/2in × 2-3/8in × 9/16in
Compliance
UL-rated for outdoor/weather-resistant use
Conduit Fitting
0.5in ID / 0.75in OD pipe thread
Current Draw
440 mA @12 VDC, 260 mA @24 VDC
Finish
Stainless steel / clear anodized (US28)
Holding Force
1,200 lb (˜ 544 kg)
Magnet Dimensions
9in × 2-5/8in × 1-5/8in
Material
Stainless steel sealed case
Operating Temp
+14 to +131 °F (–10 to +55 °C)
Use Case
Sliding or swinging gates
Voltage
12 or 24 VDC, field selectable
Wire Leads
10in color-coded in plastic jacket
Warranty
Limited Lifetime Warranty
