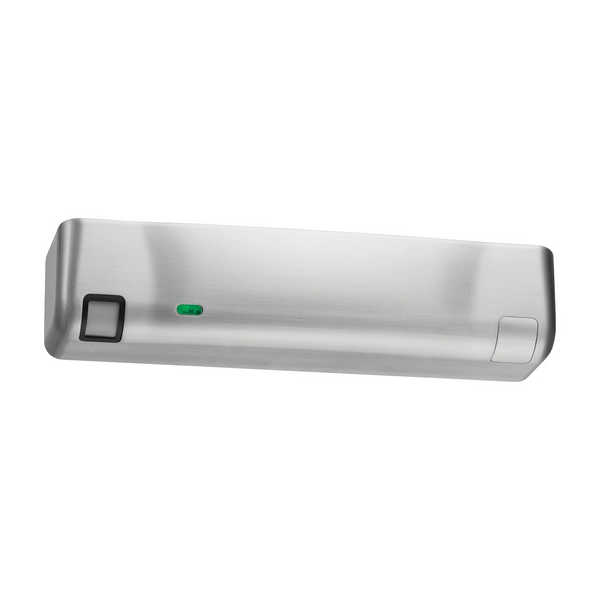

Description
BondSTAT, DPS
Features:
- Sustainability documentation
- Energy efficient, low power usage
- Automatic dual-voltage – no field adjustment required
- LED Indicator shows the lock is secure, open, or has an incomplete bond
- Tamper Switch sends an alarm output if the cover is removed and is selectable to NO or NC
- Available integrated BondSTAT and Door Position Switch
Technical Specifications
Holding Force
600 lbs (272 kg)
Voltage
12/24 VDC autosensing via microprocessor
Avg Power 12 V
140 mA
Avg Power 24 V
90 mA
Max Power 12 V
585 mA
Max Power 24 V
310 mA
Dimensions Maglock
10?×2 7/16?×2 3/16? (254×62×56 mm)
Strike Dimensions
7 7/16?×9/16?×1 5/8?
Operating Temp
+32 °F to +110 °F (0 °C to +43 °C)
Material
Ferrous housing with plated surfaces
Finishing
- Multiple (e.g.
- 613E
- 606
- 628
- 630
- BSP
- WSP)
Seal Rating
- Fully sealed electronics
- anti-tamper
BondSTAT + DPS
BD standard model
PIR Request-to-Exit
Optional integrated
Door Prop Sensor
De-energizes coil to 20 mA when propped
Anti-Tamper Switch
Wire chamber tamper switch
Relock Timer
Adjustable 0–30 sec
Compliance
- UL 10C
- UL 1034
- UL 294
- CAN4-S104
- ANSI/BHMA A156.23 Grade 3
- CSFM
Energy Saving
Up to 80 % less energy vs previous series
Warranty
Limited Lifetime Warranty
Applications
- Sustainable
- medium-security access points
Mounting
- Bracket mounted
- optimized for door closers
Aesthetic Design
Low profile for clean look
Warranty
Limited Lifetime Warranty
