Description

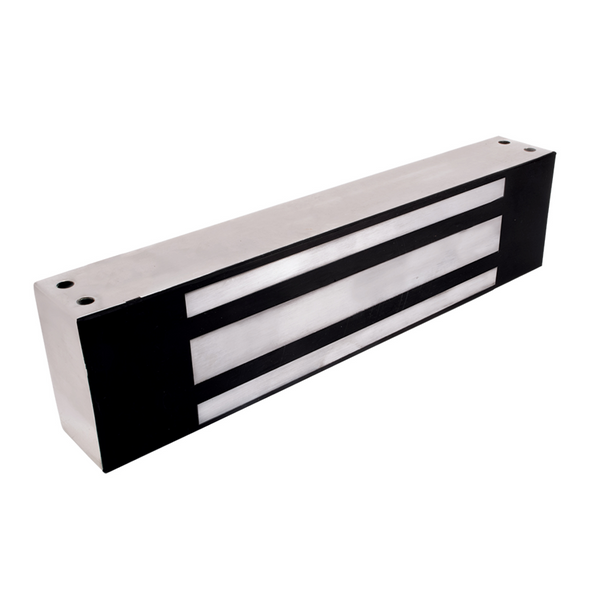

Face Drilled, Gate Conduit, BondSTAT Monitor & Door Position Switch
Features:
- Patented instant release circuit - no residual magnetism
- Surface mounts easily with minimal tools
- Fully sealed electronics - tamper and weather resistant
- Mounted using steel machine screws into blind finishing nuts
- Architectural brushed stainless steel finish (US32D/630)
- All ferrous metal surfaces plated to MIL specification
Technical Specifcations
Holding force
- 1
- 800 lb
Power voltage
12/24 VDC auto dual-voltage
Current draw
- 350 mA @12 V
- 200 mA @24 V
Material
Stainless steel
Finishing
Satin stainless steel (US32D/630)
Dimensions
12? × 3? × 1.75?
Operating temp
–40 to +140 °F (–40 to +60 °C)
Compliance
- ANSI Grade 1
- UL fire rating (3 hr)
- BAA qualified
Outdoor rated
Yes
Monitoring
BondSTAT included
Mounting
- Face-drilled
- conduit mounting
Pack contents
- Lock
- brackets
- housings
- dress cover
Strike
Standard strike included
Residual magnetism
Instant release circuit
Faceplate
Included housing
Warranty
Limited Lifetime Warranty
Origin
USA
Certification
- UL
- ANSI
- CAN/ULC
- CSFM
- CE etc.
Application
- High security commercial (prisons
- gates)
Environment
Indoor/outdoor
Warranty
Limited Lifetime Warranty
