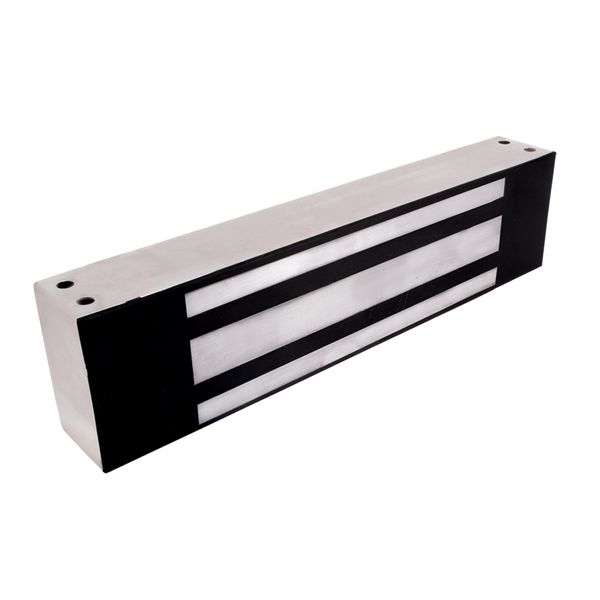

Description
BondSTAT Monitor
Features:
- Patented instant release circuit - no residual magnetism
- Surface mounts easily with minimal tools
- Fully sealed electronics - tamper and weather resistant
- Mounted using steel machine screws into blind finishing nuts
- Architectural brushed stainless steel finish (US32D/630)
- All ferrous metal surfaces plated to MIL specification
Technical Specifications
Holding force
- 1
- 800 lb (˜ 816 kg)
Power voltage
12/24 VDC dual-voltage auto
Current draw
- 350 mA @ 12 V
- 175 mA @ 24 V
Material
Stainless steel (body)
Finishing
Satin stainless steel (US32D/630)
Dimensions
12?×3?×1.75? (305×76×44 mm)
Compliance
- CE standards (assumed
- as UL listed and European finishes)
Grade
ANSI/BHMA Grade 1
Fire rating
3 hours
Outdoor use
Rated for indoor/outdoor
Monitoring
Standard BondSTAT magnetic bond sensor
Conduit
Face-mount conduit option available
Mounting
Surface-mounted with finishing nuts
Environmental
Operating temp: –40 to +140 °F (–40 to +60 °C)
Finish family
Matte silver
Dress cover
Included with housing
Residual magnetism
Instant release circuit
Warranty
Limited Lifetime Warranty
Pack qty
1 unit
Origin
USA
Strike options
- Standard
- offset
- split
- shock absorbing
Warranty
Limited Lifetime Warranty
