Description

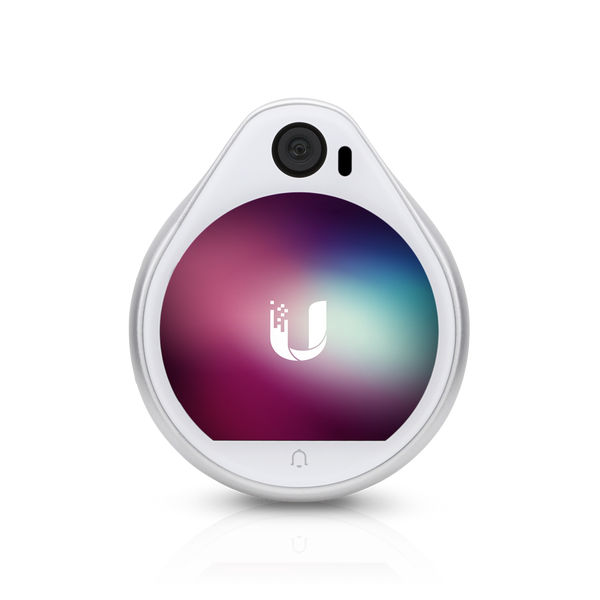

A premium door access scanner with built-in NFC reader and intercom.
Technical Specifications
Ambient operating humidity
5 to 90% noncondensing
Ambient operating temperature
-10 to 40° C (14 to 104° F)
Button
(1) Factory reset
Camera viewing angle
147.5° ± 3°
Certifications
- CE
- FCC
- IC
Connectivity
- Ethernet
- BLE 4.2
Dimensions
73.40 x 62.28 x 26.55 mm (2.89 x 2.45 x 1.05")
LEDs
Blue/White
Max. power consumption
5.5W
Mounting options*
- Wall-mount
- gang box mount*
NFC frequency
13.56 MHz
NFC read range
<30 mm
NFC standards
- ISO 14443A
- 14443B
- 15693
NFC technology
- NFC Tag 1
- 2
- 3
- 4
- 5
Networking interface
10/100 MbE
Power method
PoE
Weatherproofing
IP54
Weight
85 g (2.99 oz)
