Description
Lazerpoint is a completely new wireless solution for automatic door operators. The system introduces the many advantages of 915MHz spread-spectrum wireless technology to the automatic door market and encompasses the widest range of transmitters, receivers, activation devices, and switch enclosures available today.
Features:
- Advanced 915MHz spread spectrum (broadband) wireless communications.
- Multi-year battery life (‘AAA‘ alkaline or lithium) and low battery, gas gauge & stuck switch audible alerts.

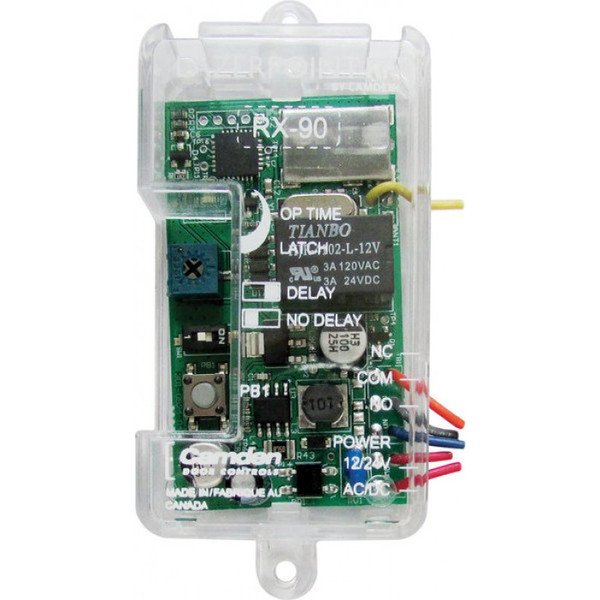

- CM-RX-90 advanced receiver, with 1 relay, 3 operating modes (delay, non-delay & latching). Ideal for vestibule applications.
- RX-92 receiver with 2 channels and 6 operating modes; saves time and avoids buying and installing additional components.
- Ultra compact receivers can be mounted in door operator cabinets.
- Innovative FOB base for wheelchair, visor, belt or wall mounting.
Technical Specifications
Color
Blue
Compliance
ROHS, ADA Compliant, FC
Contact Rating
3A @ 30VDC
Frequency
915Mhz
Warranty
3 Year Warranty
