Description

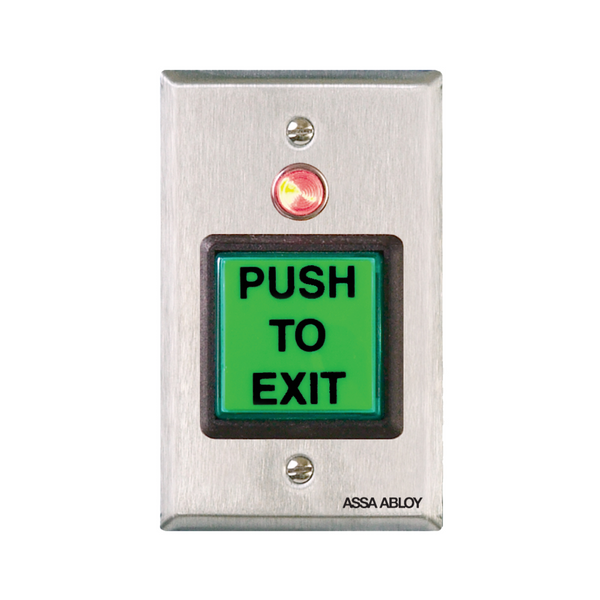

2" Button, Illuminated, Momentary, Single Gang, Green/Red/Handicap
Features:
- Includes switchable green, red and blue ADA lenses
- Red LED on plate where applicable
- 5 Amp rated contacts
- Stainless Steel single gang plate: 4.5" x 2.75" [114mm x 70mm]
Technical Specifications
ADA Lenses
Interchangeable green/red/blue ADA lenses
Button Size
2? square
Certifications
UL; ADA compliant features
Color
Silver Plate, Variable Lens Colors
Compliance
UL listed contacts, ISO 9001 manufacturer
Compliance Tags
UL listed; manufactured ISO 9001
Contact Rating
5 A SPDT relay; DPDT option available
Depth
Approx. 3? total depth
Dimensions
Plate: 4.5?×2.75? (114×70 mm); Depth ~0.625?
Faceplate Size
4.5?×2.75?
Finishing
Satin stainless (US 32D/630)
Fire Rated
Non-rated
Function
Push-to-exit door release, momentary SPDT
LED Indicator
LED at plate + button illumination
Material
Stainless steel plate
Mounting
Single gang plate with back box (illuminated)
Operating Temp
(Not specified)
Operation
Momentary spring-loaded
Origin
Made in USA
Plate Finish
Satin stainless, US 32D/630
Switch Type
SPDT (DPDT optional)
Voltage
12 VDC: 29 mA; 24 VDC: 40 mA
Warranty
Limited Lifetime Warranty
