Description

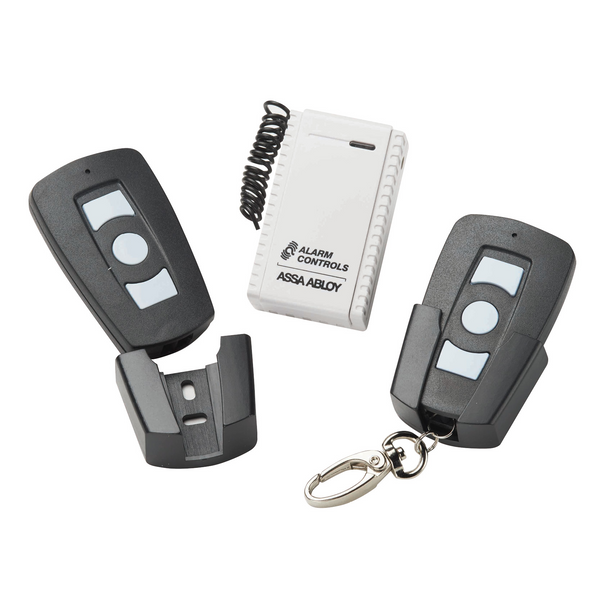

One Channel Receiver and Two Transmitters with Mount and Keychain
Features:
- RT-1 Kit includes one channel receiver and two transmitters with mount and keychain
- RT-3 Kit includes three channel receivers, one transmitter with mount and keychain
- Receiver operates on 12 or 24 VAC or VDC
- Maximum current draw 50mA
- Temperature range: -20°C to 60°C
- Rolling code; more than one billion code combinations
Technical Specifications
Kit Includes
- 1 receiver
- 2 transmitters
- mounts
- keychains
Frequency
433.92 MHz
Transmit Range
Up to 300 ft (line-of-sight)
Receiver Output Pulse
5 sec momentary output
Relay Type
- SPDT relay
- 1 A @30 VDC/120 VAC
Power (Receiver)
12/24 V DC or VAC
Max Current Draw
50 mA
Transmitter Mount Options
- Wall
- under-desk
- keychain
Rolling Code
Over 1 billion combinations
Latching Option
Jumper for latching mode
Pairing Capacity
Up to 30 transmitters per receiver
Battery Type (Transmitter)
CR2016 ×2
Warranty
Limited Lifetime Warranty
Warranty
Limited Lifetime Warranty
