Description

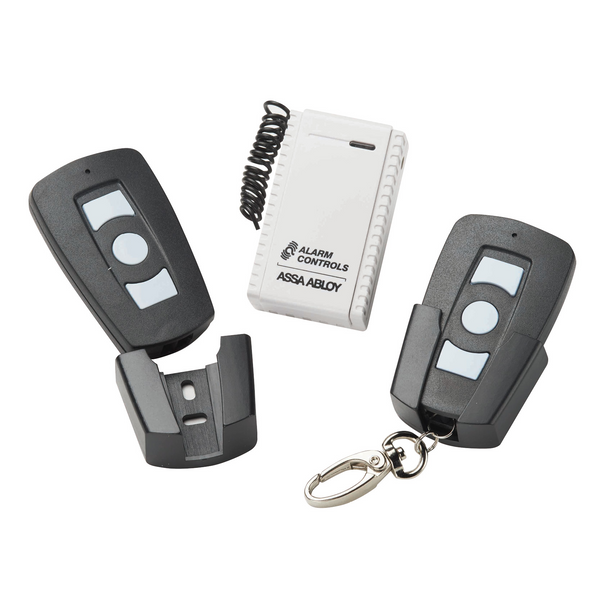

One Channel Receiver and Two Transmitters with Mount and Keychain
Features:
- RT-1 Kit includes one channel receiver and two transmitters with mount and keychain
- RT-3 Kit includes three channel receivers, one transmitter with mount and keychain
- Receiver operates on 12 or 24 VAC or VDC
- Maximum current draw 50mA
- Temperature range: -20°C to 60°C
- Rolling code; more than one billion code combinations
Technical Specifications
Battery Type (Transmitter)
CR2016 ×2
Frequency
433.92 MHz
Kit Includes
1 receiver, 2 transmitters, mounts, keychains
Latching Option
Jumper for latching mode
Max Current Draw
50 mA
Pairing Capacity
Up to 30 transmitters per receiver
Power (Receiver)
12/24 V DC or VAC
Receiver Output Pulse
5 sec momentary output
Relay Type
SPDT relay, 1 A @30 VDC/120 VAC
Rolling Code
Over 1 billion combinations
Transmit Range
Up to 300 ft (line-of-sight)
Transmitter Mount Options
Wall, under-desk, keychain
Warranty
Limited Lifetime Warranty
