Description

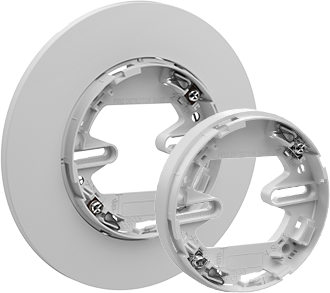

The PAD300-6DB and PAD300-4DB are low-profile, surface-mount bases used with Potter’s addressable detectors. The base uses screw clamp terminals that accept wire ranging from 22 to 12 AWG. When installed on recessed electrical boxes, the PAD300-6DB is wide enough to completely cover the back box and the immediate surrounding area. The base is equipped with a locking tab to deter unauthorized removal of the attached detector.
Features:
- Terminals marked with polarity to assist with installation
- Duplicate Terminals for In-and-out SLC Wiring
- Terminals accept 22 to 12 AWG wire sizes
- Installs on Single Gang, Double Gang, Octagon or 4” Square Box
- Locking tab prevents unauthorized detector removal
- Product includes 5-year warranty
- 6” mounting base comes with trim plate cover
Technical Specifications
Dimension
6.3 in / 160 mm
Acceptable Wire Gauge
22 to 12AWG
