Description

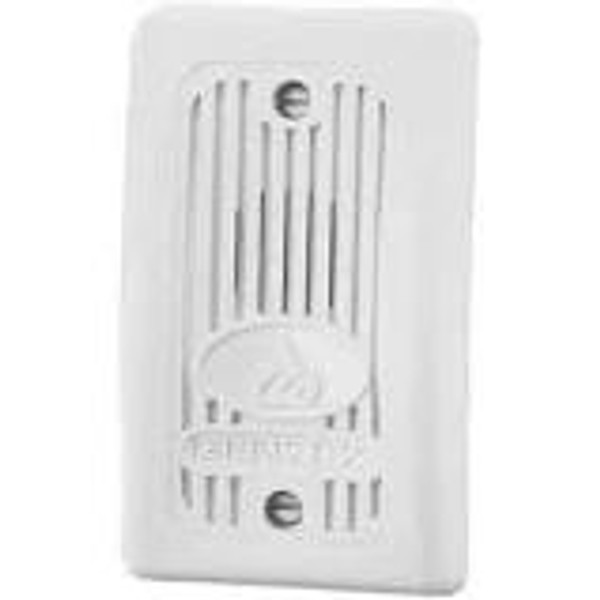

The GX93 Series mini-horn is a high quality remote audible signaling appliance that offers dependable remote annunciation. The GX93 is ideal for applications where a dependable audible alarm signal is required in applications such as hotels, dormitories and apartments. The GX93 is listed for use with both filtered and unfiltered power and a jumper is provided to select either temporal 3 or continuous tone.
Features:
- Single unit is capable of 12 VDC or 24 VDC determined by the input voltage
- Jumper selectable temporal 3 or continuous tone
- Horn frequency is 3100Hz
- Low current consumption
- Terminal blocks 12 AWG to 18 AWG
- Variety of mounting options for new construction and retrofit applications
Technical Specifications
American Wire Gauge
12-18AWG
Application
Apartment, Dormitory, Evacuation, Fire Protection System, Hotel, Synchronization Module
Color
White
Compliance
CUL Listed
Connectivity Technology
Wired
Mount Type
Wall Mount
Sound Emission
90dB
Voltage
33VDc
