Description

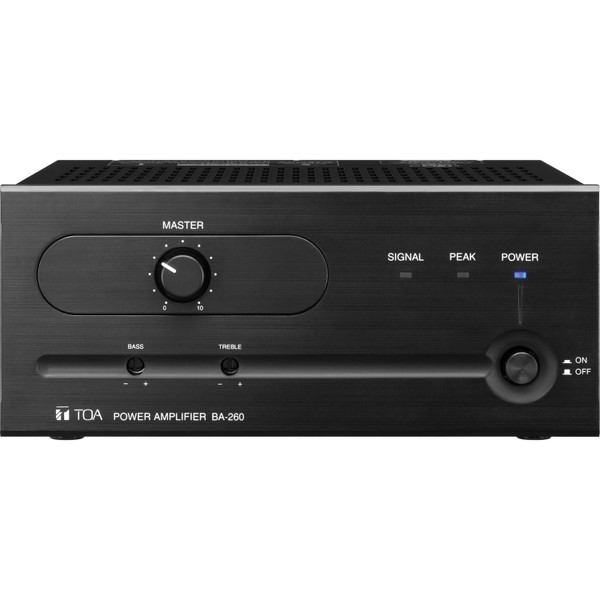

The BA-260 is a 60 W power amplifier for background music and general announcement. It is suited for use in bars, retail stores, and banquet rooms. When used in conjunction with the optional mixer amplifier BG-220 (20 W) or BG-235 (35 W), 2-channel broadcast can be made.
Features:
- Targets simple BGM applications using a single audio source without paging or MOH requirements.
- Remote master volume control.
- RCA pin jack line input.
- Thermal protection circuits shut down to protect system should overheating occur.
- Accessory security knobs for volume control prevent unauthorized volume setting changes.
- Rack-mount kit options.
- UL/cUL listed.
Technical Specifications
Compliance
UL/cUL listed.
Consumption
130W
Dimensions
210 (W) x 94.3 (H) x 265 (D) mm (8.27 x 3.71" x10.43")
Distortion
0.5 % or less, at 1 kHz, rated output
Frequency
60 Hz, 50 Hz - 20 kHz
Indicator
LED
Material
Panel: ABS resin, Case: Steel plate
Operating Humidity
35 % to 80 %RH (no condensation)
Operating Temperature
0 # to +35 # (32 # to 95 #)
S/N Ratio
80dB
Tone Control
Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz
Voltage
120 VAC
Weight
4.6 kg (10.14 lb)
Warranty
5 Years Warranty
