Description

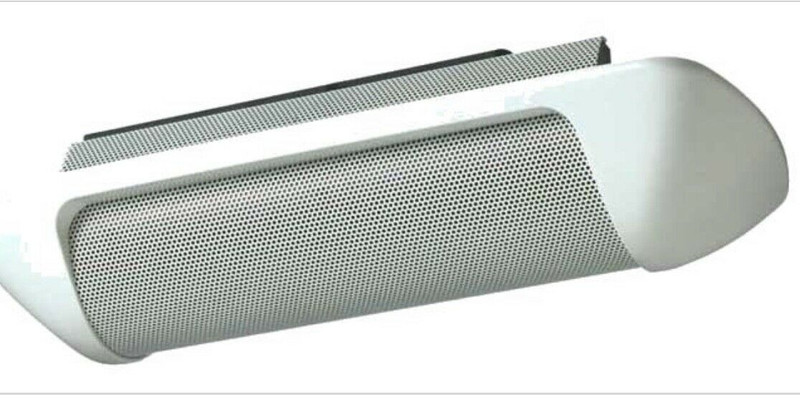

The H-1 is a cylinder-shaped, small flush-mount 2-way speaker that ensures quality sound reproduction. The mounting angle for its enclosure can be adjusted for up to 90 degrees.
Features:
- Sleek and attractive 2-way design speaker
- Ferrofluid-cooled balanced dome tweeters and neodymium magnet cone woofers
- Narrow coverage area allows a controlled sound
- Sound direction can be adjusted within 90°
- Built-in transformer allows both high and low impedance
- High power handling
- Easy installation in standard electrical gang boxes
- Fire-rated ABS enclosure (UL 94-V0)
Technical Specifications
Color
White
Speaker Type
Sealed Type
Consumption
12W
Impedance
- 4 Ω
- 16 Ω
- 100 V line: 830 Ω (12 W)
- 1.7 kΩ (6 W)
- 3.3 kΩ (3 W)
- 70 V line: 420 Ω (12 W)
- 830 Ω (6 W)
- 1.7 kΩ (3 W)
- 3.3 kΩ (1.5 W)
Sensitivity
- 85dB (1 W
- 1 m)
Frequency
- 120 - 20
- 000 Hz
Connector Type
2xDetachable screw terminal
Material
- ABS
- Steel Plate
- Stainless Steel
Dimensions
312 (W) x 126 (H) x 90 (D) mm
Weight
1.5kg
Warranty
5 Years Warranty
