Description

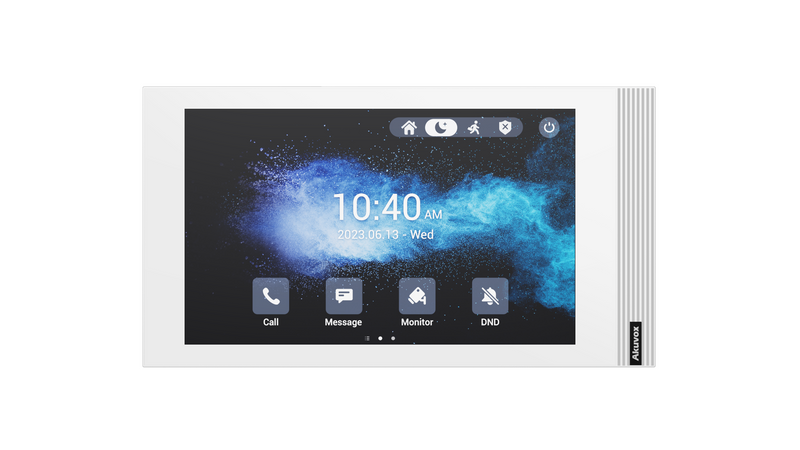

Akuvox S562 is a 7" Linux indoor monitor featuring a stack of smart intercom features. With a compact body and stylish design, it is perfect for limited space and blends well into modern homes.
Features:
- Ultra-clear, stylish appearance
- 7-inch capacitive touch screen with energy saving mode
- Two-way audio communication with other units in the network
- Complies with SIP standard for easy integration in every SIP capable PBXes
- Powered by PoE or external source
- Support US or European electrical wall box mounting
Technical Specifcations
Front panel
Plastic
RAM/ ROM
128MB / 128MB
Display
7 Inch TFT LCD 1024x600 resolution
Screen
7 lnch capacitive touch screen
RS485 port
Support
Relay out
1
Bell in
1
l/0
8
Microphone
-42dB
Speaker
4O /2w
Ethernet ports
- 2xRJ45
- 10/10OMbps adaptive
Power In
IEEE 802.3at PoE or 12V DC connector
Installation
Wall-mounted & Desktop
Dimension
216.4x118.8x21 . 7mm
Working Humidity
10~90%
Working Temperature
- -10°
- C~ &plus
- 45°
- C
Storage Temperature
- -20°
- C~ &plus
- 70°
- C
Display Mode
- Normally white
- Transmissive
LCD Size
7 inch (Diagonal)
Resolution
1024x600
Contrast ratio
600: 1
Luminance
250 cd/?
Viewing Angle
- 50° Left, 50° Right
- 40° Upper
- 50° Lower
Touch Screen
Projected capacitive
Audio SIP
- v1 (RFC2543)
- SIP v2 (RFC3261)
Narrowband audio codec
- G.711a
- G.711 u
- G.729
Broadband audio codec
G.722
DTMF
- Out-of-band DTMF (RFC2833)
- SIP lnfo
Audio Feature
Echo Cancellation
Video Streaming formats
H.264
Networking Protocols support
- IPv4
- HTTP
- HTTPS
- FTP
- DNS
- NTP
- RTSP
- RTP
- TCP
- UDP
- ICMP
- DHCP
- ARP
Deployment & Maintenance
Auto-Provisioning
Application Scenario
Color
White
