Description

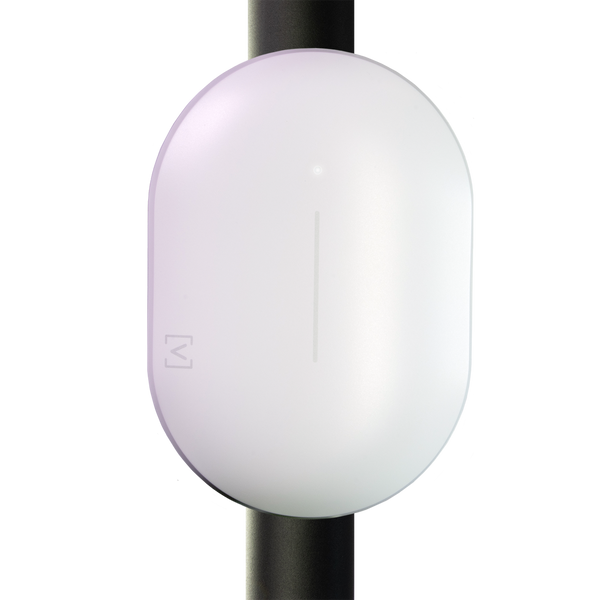

The AP6-Pro Outdoor is IP68 rated, offering maximum protection against the environment, designed to withstand harsh environments with an operating temperature of -40 to 70° C (-40 to 158° F).
Features:
- Superior Range and Performance
- Scalable Cloud-Based Management
- On-The-Fly Changes and Scanning
- IP68 for Optimal Weatherproof Protection
Technical Specifications
Advanced QoS
802.11e
Antenna Gain
2.4 GHz: Up to 3.3 dBi, 5 GHz: Up to 4.3 dBi
Button(s)
Reset / Factory Reset
Certifications
CE, FCC, IC
Concurrent Clients
350+
Dimensions
210 x 150 x 90 mm (8.3 x 5.9 x 3.5")
Guest Traffic Isolation
Supported
Intelligent WiFi Scheduling
Yes
LED
Blue, White
MIMO
5 GHz: 4 x 4, DL/UL MU-MIMO, DL/UL MU-OFDMA
2.4 GHz: 2 x 2. DL/UL MU-OFDMA
Explicit TX beam-forming
Management Interface
(1) GbE RJ45 Port
Maximum Transmit Power
2.4 GHz: 23 dBm @2NSS, 5 GHz: 26 dBm @4NSS
Mount Material
Top Cover: Polycarbonate, Bottom Cover: Milled Aluminum
Mounting
Pole mount, wall mount
Multi-BSSID
Supported
Network Interface
Ethernet, WiFi, Bluetooth
Operating Humidity
5 to 95% Noncondensing
Operating Temperature
-40 to 70° C (-40 to 158° F)
Painless Hotspot Setup
Yes
Power Consumption
25W Max, 7 - 15W Typical @ 23° C (73° F)
Power Method
PoE+
Power Supply
PoE+ enabled network switch 48V, 0.5A PoE adapter (optional)
Roaming
802.11r/k/v
Scale From Home To SMB To Stadium
Yes
Seamless Per-Client Settings
VLAN, Device Type, Rate Limit, Hotspot/Schedule Exception
Supported Data Rates
802.11a/g: 6 Mbps to 54 Mbps
802.11b: 1 Mbps to 11 Mbps
802.11n: 6.5 Mbps to 300 Mbps (Up to MCS 31)
802.11ac: 6.5 Mbps to 3.4 Gbps (Up to MCS 9)
802.11ax: 2.4 GHz: Up to 573 Mbps, 5 GHz: 6.5 Mbps to 5.8 Gbps (Up to MCS 13)
Supported Voltage Range
42.5 - 57V DC
Throughput Rate
2.4 GHz: Up to 573 Mbps, 5 GHz: Up to 5.8 Gbps
VLAN
802.1Q
Wall Mount Material
Galvanized Steel
Weather Proofing
IP68
Weight
0.9 kg (1.9 lbs)
WiFi Standards
801.11a/b/g/n/ac/ax, WiFi4/WiFi5/WiFi6
Wireless Security
WPA2-PSK, WPA2-SAE, WPA-Enterprise (WPA2/WPA3)
Zero Wait DFS
Yes
