Description

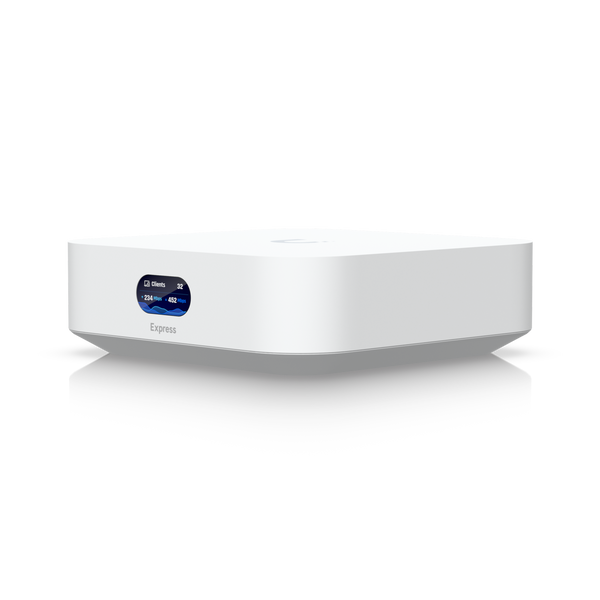

Impressively compact UniFi Cloud Gateway and WiFi 6 access point that runs UniFi Network.
Powers an entire network or simply meshes as an access point
Features :
- Built-in WiFi 6 AP
- Managed with UniFi Network 8.0.7 and later
- Manages up to four additional UniFi Network devices when operated as a gateway
Technical Specifications
Advanced Networking
License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support
Ambient Operating Humidity
5 to 95% noncondensing
Ambient Operating Temperature
-10 to 45° C (14 to 113° F)
Antenna Gain
2.4 GHz: 4 dBi
5 GHz: 5.15 dBi
Antennas
(2) Internal 2.4G/5G WiFi dual-band antenna
(1) Internal 2.4G single-band BT antenna
Button
Factory reset
Certifications
CE, FCC, IC
Dimensions
98 x 98 x 30 mm (3.6 x 3.6 x 1.2")
Enclosure Material
Polycarbonate
LCM Display
0.96" status display
MIMO
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
5 GHz: 2 x 2 (DL/UL MU-MIMO)
Management Interface
Ethernet
Bluetooth
Max. TX Power
2.4 GHz: 22 dBm
5 GHz: 25 dBm
Max. Power Consumption
10W
Networking Interface
LAN: (1) GbE RJ45 port
WAN: (1) GbE RJ45 port
Next-generation Security
Application-aware firewall rules
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Performance
Internet quality and outage reporting
Power Method
USB type C (5V DC/3A)
Software
WiFi standards: 802.11a/b/g/n/ac/ax
Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID: Console mode: 3 per band
Standard AP: 8 per band
VLAN: 802.1Q
Advanced QoS: Per-user rate limiting
Guest traffic isolation: Supported
Concurrent clients: 50+*
*Performance may be degraded with advanced gateway features (e.g., Traffic Identification).
Supported Data Rates
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4): 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
Throughput Rate
2.4 GHz: 573.5 Mbps
5 GHz: 2.4 Gbps
Weight
302 g (10.7 oz)
