Description

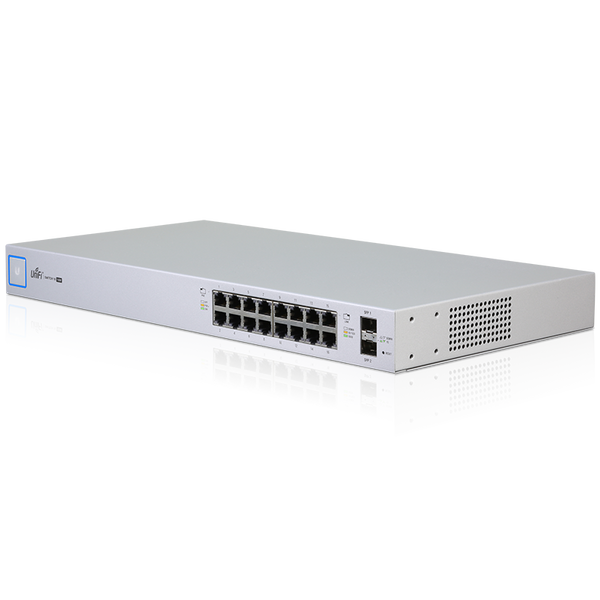

Layer 2, PoE switch with (16) GbE, PoE+ and 24V passive PoE RJ45 ports and (2) 1G SFP ports.
Technical Specifcations
Ambient operating humidity
5 to 95% noncondensing
Ambient operating temperature
-5 to 40° C (23 to 104° F)
Certifications
- CE
- FCC
- IC
Dimensions
442 x 221 x 44 mm (17.4 x 8.7 x 1.7")
ESD/EMP protection
- Air: ± 24kV
- contact: ± 24kV
Enclosure material
SGCC steel
Forwarding rate
26.78 Mpps
Management interface
Ethernet In-Band
Max. PoE wattage per port by PSE
Max. power consumption
28W (Excluding PoE output)
Networking interface
PoE interface
- (16) PoE/PoE+ (Pins 1
- 2+; 3
- 6-)
Power method
- Universal input
- 100—240V AC
- 50/60 Hz
Power supply
- AC/DC
- internal
- 150W
Shock and vibration
ETSI300-019-1.4 Standard
Sound level*
Fan level: 0: 1.7 dBr
Supported voltage range
100—240V AC
Switching capacity
36 Gbps
available PoE
122W
non-blocking throughput
18 Gbps
Voltage range PoE mode
Weight
Without mounting brackets: 2.8 kg (6.2 lb)
Total available PoE
122W
Total non-blocking throughput
18 Gbps
