Description

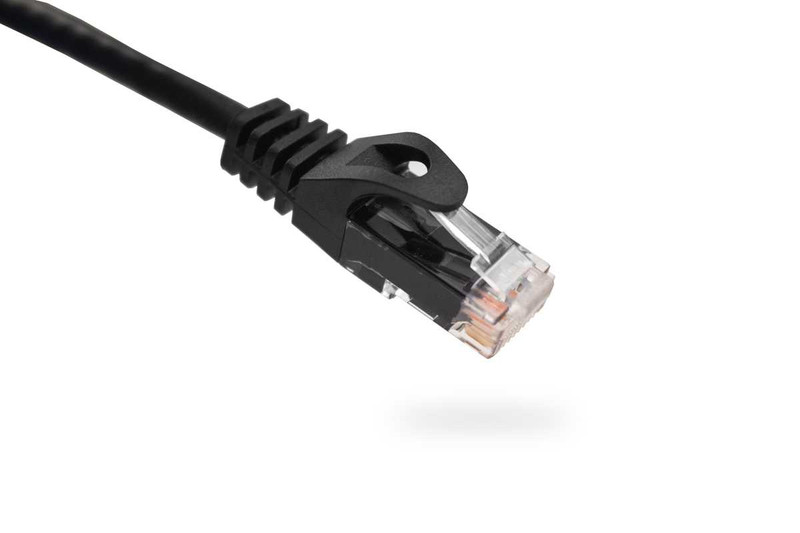

Category 6 Patch Cords, Stranded 24-AWG UTP, 8P8C (“RJ45”) Modular Plugs.
Features:
- CAT6 Patch Cord with Boot & Protector
- 550MHz High-Performance Patch Cord
- CM Rated Flame-Retardant PVC Jacket
- Designed to exceed ANSI/TIA-568-C.2 Category 6 and ISO 11801 2nd Edition Class E standards
- 8P8C Gold Plated Pins 50U”
- 568B Wiring Color Code
Technical Specifications
Color
Black
Compliance
CM Rated, UL Listed, RoHS
Conductor Resistance
Max. 9.38 Ω/100m
Conductor Size
24 AWG
Conductor Type
Stranded Bare Copper
Jacket Marking
CAT.6 UTP PATCH 3P VERIFIED TO ANSI/TIA-568.2-D & ISO/IEC 11801 ED.2 & EN 50288-6-2 & IEC 60332-1-2 24AWGX4P CMH(UL) E164469-F3
Material
High-Density Polyethylene (HDPE)
Number Of Conductors
8 Stranded
Operating Temperature
-20°C to 70°C
Voltage
300 V
