Description

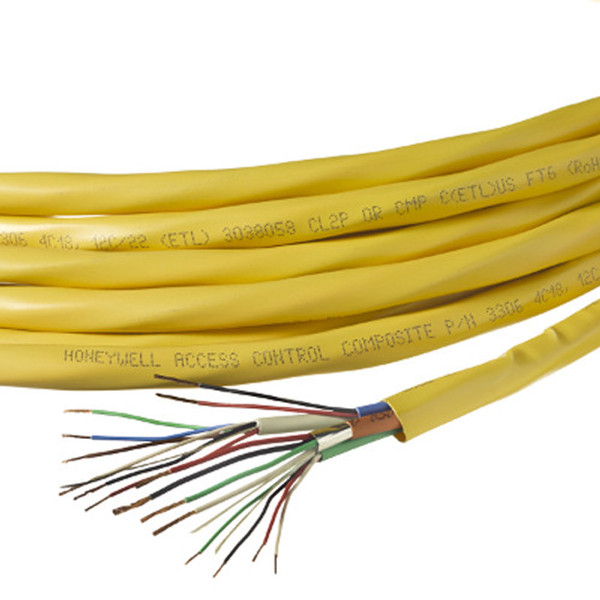

Genesis Access Control Cables simplify and expedite wiring of access points by combining individual lock power, door contact, card reader, and request-to-exit cables into a single, easy-to-pull bundle
Features:
- Riser-Safe FT4 Compliance
- Designed for Vertical Runs
- Durable PVC Jacket for Building Routes
- UL 444/1666 Compliance
- Sunlight Resistant and -20°C to 75°C
- REELEX/Pull-Box with Countdown Markings
Technical Specifications
American Wire Gauge
22AWG, 18AWG, 22AWG, 22AWG
CAT
CL2R/FPLR
Cable Length
500ft
Cable Type
CM Riser Cable
Color
Yellow
Compliance
UL1666, C22.2 FT4, UL444, UL1424, UL13, Sunlight Resistant, REACH/RoHS
Conductor Type
Stranded Bare Copper
Jacket Type
PVC
Nominal Weight
95.9lbs/1000ft
Number Of Conductors
6, 4, 2, 4
Package Type
Reel
Shield Type
Shielded
Stranding
7Strand, 19Strand, 7Strand, 7Strand
Voltage
300V
