Description

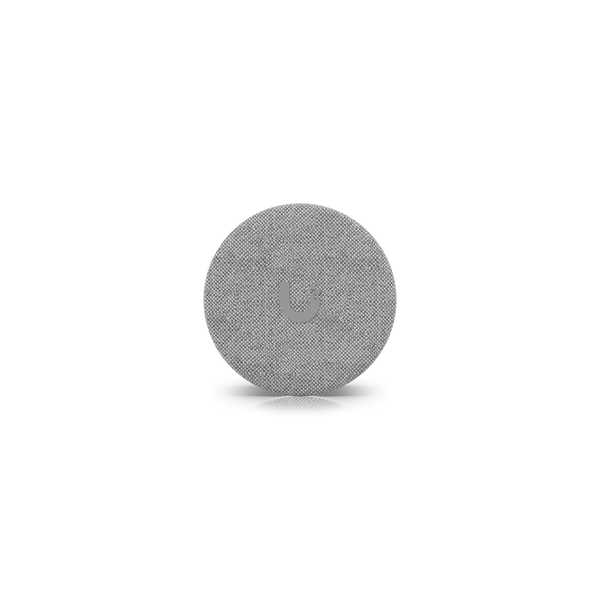

This module features an integrated microphone array and speaker for two-way audio when connected to the AI Theta camera. A flush mount and connection cable are included for a seamless installation.
Features:
- Designed for AI Theta Camera
- Integrated Two-Way Audio
- UniFi Protect for iOS & Android
- Flush Mount & Connection Cable Included
Technical Specifications
Ambient Operating Temperature
-20 to 40° C (-4 to 104° F)
Cable Connector Type
Theta proprietary
Cable Diameter
3.3 mm (0.13")
Cable Jacket Enclosure Dimensions
28 x 13 x 7.5 mm (1.1 x 0.5 x 0.3")
Cable Jacket Enclosure Material
PVC
Cable Jacket Material
Woven fabric
Cable Length
1 m (3.3 ft)
Cable Weight
18 g (0.63 oz)
Certifications
FCC, IC, CE
Dimensions
Ø61.5 x 39 mm (Ø2.4 x 1.5")
Enclosure Material
Aluminum alloy, polycarbonate
Max. Power Consumption
4.5W
Microphone
Yes (Can be disabled)
Mount Material
Polycarbonate
Mounting
Ceiling mount
Power Method
USB Type C, 5V DC, 0.9A
Software
Web application: UniFi Protect: Version 2.7.18 and later
Mobile app: UniFi Protect: Version 1.11.0 and later
Speaker
Yes
Weight
UVC-AI-Theta-Audio: 65 g (2.3 oz)
UVC-AI-Theta-Audio Flush Mount: 22 g (0.8 oz)
