Description

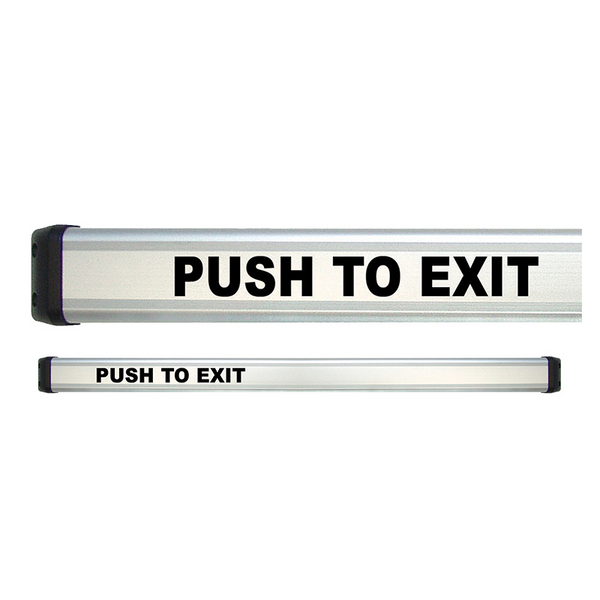

36in Long, Satin Aluminum Push Bar, Two DPDT Switches, Door Loop Included
Features:
- Low profile design requires only 1/4" movement for activation
- Mechanical action activates DPDT relay
- 5A rated output to allow free egress or initiate an exit delay timer
- Redundant switches ensure reliable, fault tolerant operation
- All metal construction
- Includes 16ft 22 AWG6 conductor cable and armored door cord
Technical Specifications
Actuation Travel
¼in movement
Bar Length
36" (914 mm)
Cable Included
16 ft 22 AWG 6-conductor + armored cord
Compliance
Not for fire-rated doors; ADA codes
Contact Rating
5 A output
Finish
Satin aluminum (US32D); Duranodic option
Indoor Use
Yes
Material
All-metal metal construction
Operation Temp
–20 °C to +85 °C (–4 °F to 185 °F)
Redundant Switches
Yes (fault-tolerant)
Relay Type
DPDT, mechanical
Use Case
Electronic-release exit device
Warranty
Limited Lifetime Warranty
