Description

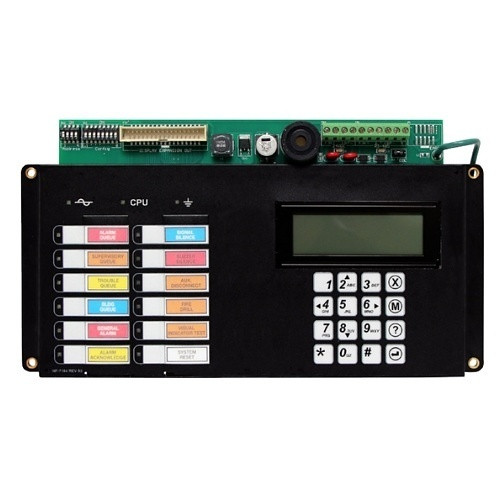

The RAM-3318-LCD Remote Annunciator is used as a component of an MR-3318 Fire Alarm System. It provides an exact mimic of the MR-3318 display at a remote location. The display is four lines, 20 characters back-lit alphanumeric LCD. It displays information regarding the panel, its circuits, and devices. An on-screen cursor is controlled by the cursor buttons for menu selection and control.
Features:
- 4 line, 20 character back-lit alphanumeric LCD display
- Common feature LEDs and push buttons
- Alphanumeric keypad for the LCD
- Each RAM-3318-LCD has its own address. Addresses available are 1 to 7 inclusive
- Cursor buttons for menu selection and control
- Mounted using one of the MMX-BB-1000
Technical Specifications
Consumption
Standby 70mA, Alarm 100mA
Display Type
4x20 Main LCD Display
Keypad Type
Alphanumeric Keypad
Product Type
Emergency Panel
Voltage
24VDC
Warranty
3 Year Warranty
