Description

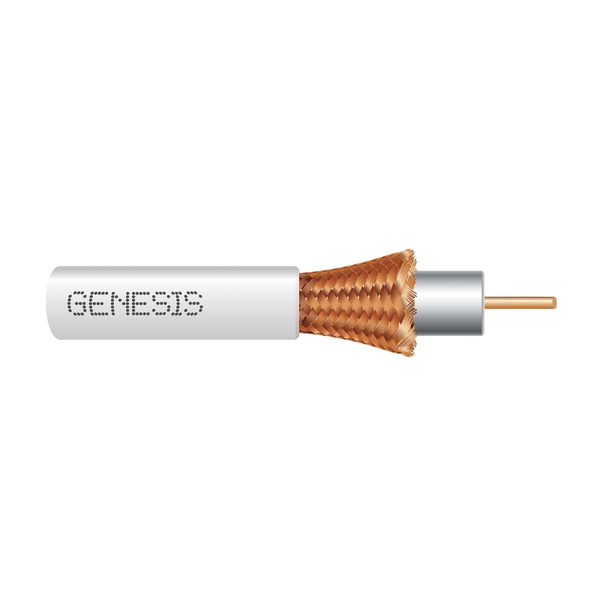

Genesis Baseband CCTV Coaxial Cables ensure continuous video connectivity for analog video surveillance systems. Bare copper center conductors minimize voltage drop to preserve excellent video quality.
Features:
- Plenum CMP/FT6 compliance to meet code in air-handling areas
- Solid bare copper with LS PVC insulation; durable plenum PVC jacket
- Ripcord under jacket speeds strip-out and protects conductors
- Easy-to-read countdown footage legend accelerates installation
- 300 V rating; −20 °C to 75 °C operating window for harsh sites
- Ideal for security loops, building controls, and background audio runs
Technical Specifications
American Wire Gauge
20AWG, 20AWG
CAT
RG59/U
Cable Length
500ft
Cable Type
Coaxial Antenna Cable
Color
White
Compliance
UL1685, UL444, UL13, Sunlight Resistant, REACH/RoHS
Conductor Type
Solid Bare Copper
DC Resistance
10.9Ohms/1000ft at 20°C
Jacket Type
PVC
Nominal Weight
35lbs/1000ft
Package Type
Pull Box
Shield Type
BC Braid, Unshielded
Voltage
300V
