Description

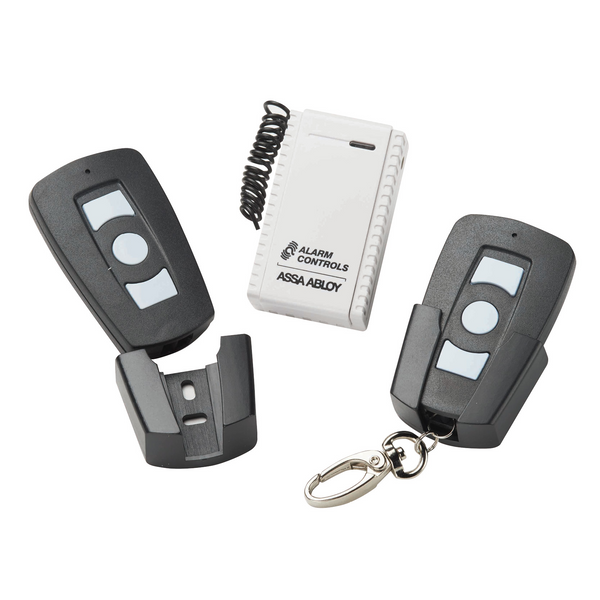

Three Channel Receivers and One Transmitter with Mount and Keychain
Features:
- RT-1 Kit includes one channel receiver and two transmitters with mount and keychain
- RT-3 Kit includes three channel receivers, one transmitter with mount and keychain
- Receiver operates on 12 or 24 VAC or VDC
- Maximum current draw 50mA
- Temperature range: -20°C to 60°C
- Rolling code; more than one billion code combinations
Technical Specifications
Kit Includes
- 3 receivers
- 1 transmitter
Frequency
433.92 MHz
Transmit Range
Up to 300 ft
Receiver Outputs
5 sec momentary relays
Relay Contact
- SPDT
- 1 A @30 VDC/120 VAC
Power (Receivers)
12/24 V DC/VAC
Current Draw
50 mA max
Antenna
12in wire on receivers
Rolling Code
>1 billion combos
Pairing Method
Up to 30 transmitters per receiver
Learn Button
- On each receiver
- LED feedback
Operating Temp
-20 °C … +60 °C
Warranty
Limited Lifetime Warranty
