Description

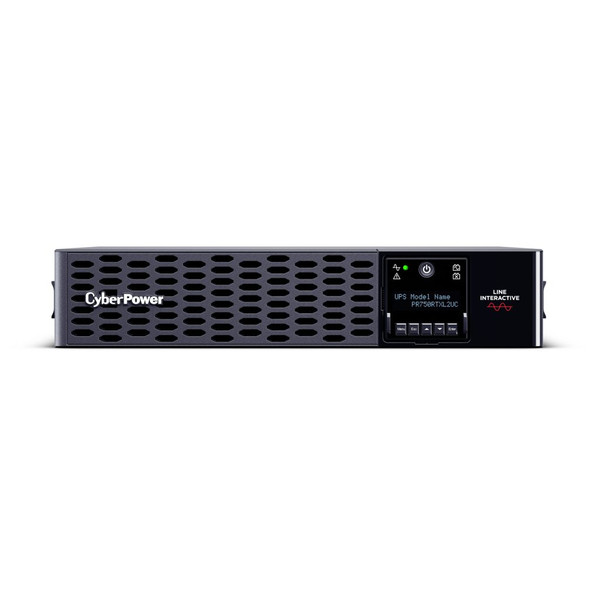

The PR750RTXL2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower’s Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.
Features:
- Battery Backup : Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
- Surge Protection : Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
- Sine Wave Output : The UPS generates energy that is identical to, or cleaner than the utility company’s power grid. Benefits include low total harmonic distortion, minimal electrical noise, and optimal line clarity.
- Automatic Voltage Regulation (AVR) : AVR increases or decreases the AC power and maintains a safe voltage level without switching to battery mode and conserving battery life.
- Battery Equalization Technology : Battery Equalization is an advanced charging process that maintains the voltages of the batteries at the same level to increase battery life.
- Critical Load Outlets: Extend runtimes for critical devices by powering down non-critical equipment to free up battery capacity.
Technical Specifications
Battery
12V/7Ah Sealed Lead-Acid Battery
Battery Life
3 Hours (0% to 90% charged)
Color
Black
Compliance
RoHS Compliant, UL1778 CSA C22.2 No 107.3 FCC Class B VCCI DOE Compliant
Form Factor
Rack, Tower
Frequency
47Hz – 63Hz
Indicator
LED: Power On Line Mode, Battery Mode, Fault Night Mode, Wiring Fault
Material
Metal
Operating Temperature
32 – 104 °F (0 – 40 °C)
Overload Protection
Internal Circuitry Limiting : Circuit Breaker Protected
Product Length
10ft
Surge Protection
2430 J
Voltage
100 – 125VAC
Warranty
3 Year Warranty
