Description

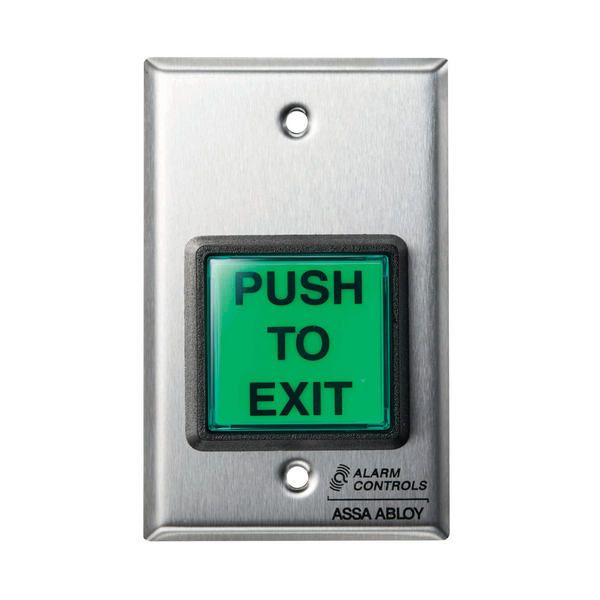

2in Square, Green Illuminated Push Button, SPDT, 1A Contacts, PUSH TO EXIT, Single Gang, Stainless Steel Wall Plate, 12/24 VAC/VDC, UL Listed
Features:
- Switch mounted on wall plate
- Options for wall plate size, LEDs, time delay
- 2" square or 5/8" x 7/8" rectangular push button
- LED button color options available: Red, Green, ADA
- Illuminated with hi-brightness LED
- Momentary SPDT or DPDT action switch
Technical Specifications
Button Color
Green
Button Size
2 in square
Compliance
UL 294 listed
Finishing
430 stainless steel finish
LED Lighting
Hi-brightness, 12/24 VAC/DC
Labeling
PUSH TO EXIT legend
Material
430 stainless steel
Output
DPDT timed
Plate Mount
Single-gang
Relay Rating
2 A @ 35 VDC
Termination
10in colored leads
Time Delay
Adjustable 2–45 s
Warranty
Limited Lifetime Warranty
