Description
Features:
- Switch mounted on wall plate
- Options for wall plate size, LEDs, time delay

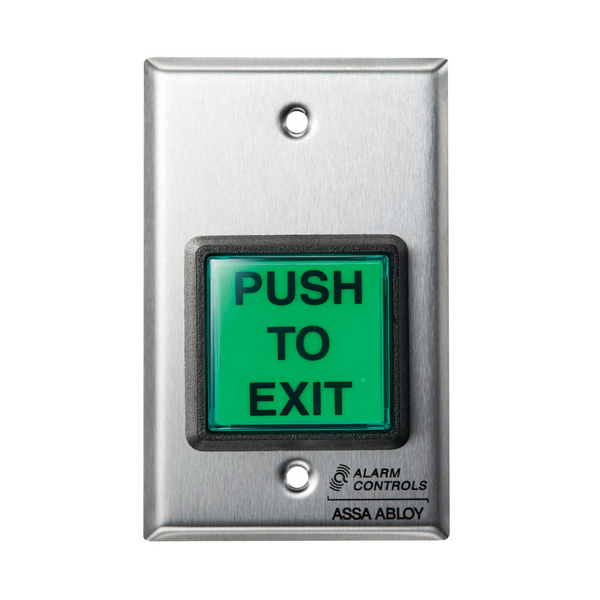

- 2" square or 5/8" x 7/8" rectangular push button
- LED button color options available: Red, Green, ADA
- Illuminated with hi-brightness LED
- Momentary SPDT or DPDT action switch
Technical Specifications
Button Size
5/8in × 7/8in green rectangular
Wall Plate
Single-gang stainless steel
LED Operation
12–24 VAC/DC
LED Brightness
Hi-brightness LED
Switch Action
Momentary action
Relay Contacts
- SPDT timed contacts
- 2 A @ 35 VDC
Timer Range
Adjustable 2–45 seconds
Switch Depth
2.5in behind plate
UL Compliance
UL 294 listed
Labeling
PUSH TO EXIT screen
Finishing
Satin stainless steel
Material
430 stainless steel
Warranty
Limited Lifetime Warranty
