Description

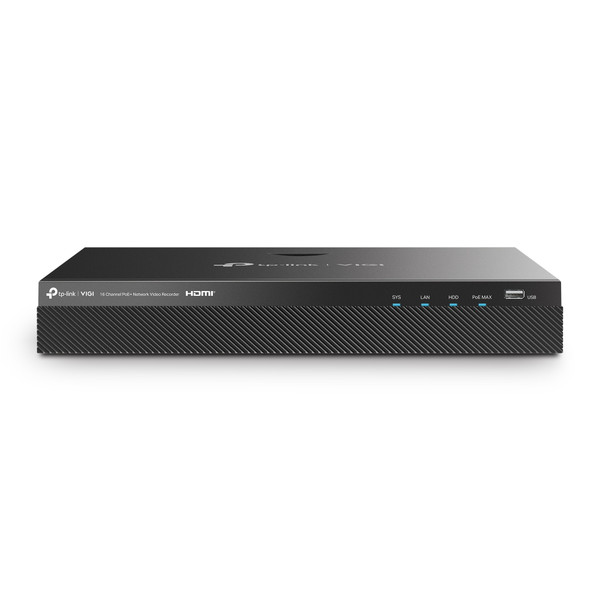

The VIGI NVR2016H supports 16-channel large-scale monitoring. It ensures efficient multi-camera management. Suitable for commercial environments.
Features:
- 16-Channel Live View and 4K HDMI Video Output
- 16× 10/100 Mbps PoE+ Ports with 140 W PoE Budget
- Up to 10-ch @ 3MP (25fps) / 16-ch @ 1080P (25fps) Decoding Capability
- 16-Channel Synchronous Playback
- 320 Mbps Incoming and Outgoing Bandwidth
- 2× SATA Interfaces and 1 Up to 16 TB
Technical Specifications
Audio Compression
G.711A/G.711U/G.726
Bandwidth
320Mbps/320Mbps
Channels
16CH
Compliance
CE NTRA BSMI VCCI FCC HDMI ONVIF
Consumption
6.2W Without Disk, 40W With Disk
Ethernet Port
1 RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
Playback Control
16 Channel Synchronous Playback
Protocol
UPnP (Plug and Play) NTP (Network Timing) SMTP DNS TCP/IP UDP ICMP, HTTP HTTPS DHCP RTSP SSL/TLS RTP IPv4 ARP FTP/SFTP IPv6 SNMP
Resolution
3840x2160
SATA
2 SATA Interface
Storage Capacity
Up to 16TB
USB Port
1x USB 2.0, 1x USB 3.0
Voltage
53.5V DC/2.43A
Warranty
5 Year Warranty
