Description

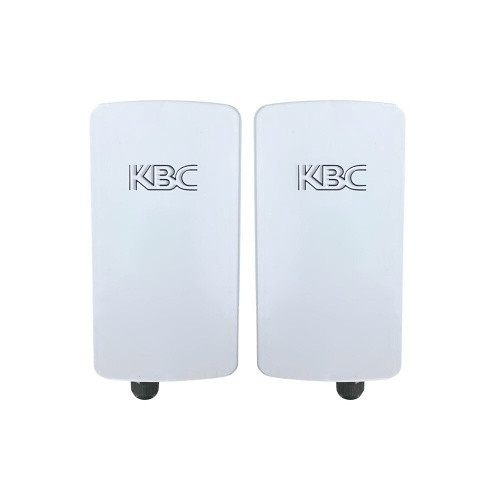

The WES5 offers unparalleled throughput, delivering up to 2.4 Gbps (radio rate) when connected to another WES5 unit in an optimal wireless environment. Its rugged, outdoor-ready design makes it the perfect solution for transmitting data to remote IP devices or extending long-range internet and network connections. Common configurations for the WES5 include point-to-point and point-to-multipoint setups, as well as secure local user-managed Wi-Fi access, providing easy connectivity at remote sites without direct access to the switch powering the WES5 unit.
Features:
- Multiple mode configurations (Host/Client/Ad-Hoc)
- Gigabit PoE - IEEE 3at/bt or Passive 48Vdc
- 11a/n/ac/ax compliant
- Transmission Power Control, up to 27dBm
- Integrated directional antenna (option for external connection available)
- Static or DFS in 5.180~5.825 GHz bands
Technical Specifications
Compliance
FCC Part 15 Subpart C, CE, FC
Consumption
Max 14.4W, typical 7W (5)
Frequency
2400~2480MHz
IP Rating
IP66
Mount Type
Pole Mount, Wall Mount
Operating Humidity
5 to 95% non-condensing
Operating Temperature
-40°~ +74°C / -40°~ +165°F
