Description

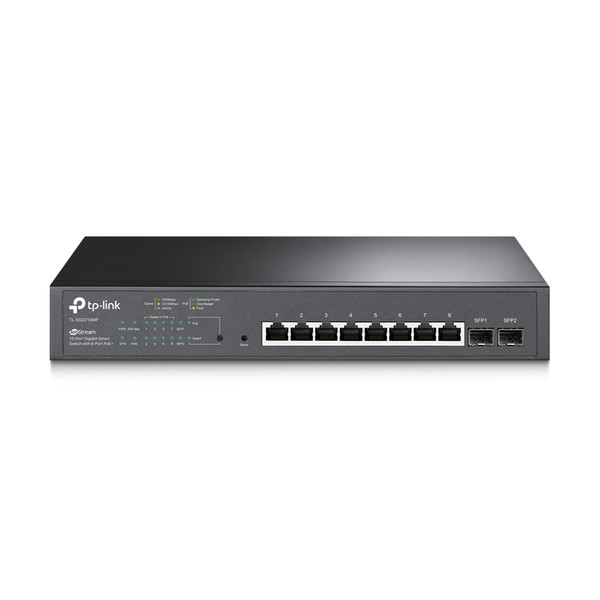

The TP-Link JetStream TL-SG2210MP is a 10-port Gigabit Smart Switch featuring 8 PoE+ ports and 2 SFP slots. It delivers a robust 150 W total PoE budget (up to 30W per port) to power devices like Wi-Fi access points and IP cameras. It fully integrates with the Omada SDN platform for centralized cloud management
Features:
- 150 W PoE Budget: 8× 802.3at/af-compliant PoE+ ports with a total power supply of 150 W
- Full Gigabit Ports: 8× gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
Technical Specifications
Buffer
4.1Mbit
Compliance
CE FCC RoHS
Consumption
12.2W No PD, 173.9W With PD
Dimensions
11.6 x 7.1 x 1.7 in(294 x 180 x 44 mm)
Ethernet Port
8x 10/100/1000Mbps RJ45 Ports, 2x 100/1000Mbps SFP Slots
Fans
1 Fan
Forwarding Rate
14.9Mpps
Heat Dissipation
41.6BTU/h No PD, 539.4BTU/h With PD
MAC Address
8K
Operating Temperature
0–50 ℃ (32–122 ℉)
Switch Rating
20Gbps
Voltage
100-240V AC 50/60Hz
